Hirschmann


E Series M12
IEC 60947-5-2		 Appliance
sockets and connectors
for self - assembly
with wire ends
    Product features
  1. installation of controls and switch gear in housing (instead of standard PG screw couplings)

    Variations
  1. Appliance sockets and connectors for self-assembly with wire ends

    Basic data
  1. Protection class IP 67 (IEC 60529)
  2. Conductor color identification complies with European standards (EN 50044)

Further information
See technical data in the catalog Circular connectors for automation technique DS 280 490-450

Example for placing orders: 933 039-100 ELKE 412 PG9

Poles Socket
ELKE		 Plug
ELST		 Operating
Voltage		 Comments
Contacts
tin-plated		 Contacts
gold-plated		 Contacts
tin-plated		 Contacts
gold-plated
4 412 PG 9 933 039-100   933 916-206 933 216-106 UC 250V ( ~ )
412 PG 9 P   933 044-100     Coding with adjusting nut,
re-positionable
5 512 PG 9   933 040-100   932 878-100 UC 50V ( ~ )
512 PG 9 P   933 045-100     Coding with adjusting nut,
re-positionable
Accessories: fastening nut with PG 9 thread 733-877-001 ELST M PG 9

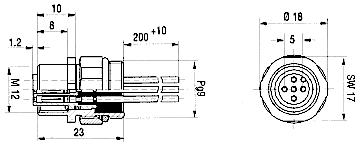

ELKA...PG 9

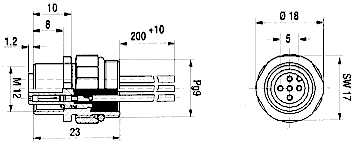

ELKE...PG 9

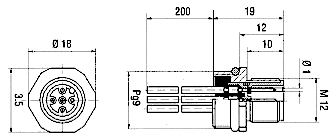

ELST...PG 9
