Hirschmann

E Series M12 IEC 60947-5-2	Cable sockets and plugs for self - assembly
Product features connection of Inductive or capacitive proximity switches photoelectric barriers Pressure-operated switches ect. Variations Cable sockets and plugs without LED (housing black, PG7 and PG9) Cable sockets and connectors, LED insertable (accessories), (housing transparent/topas, PG7) Cable sockets and connectors with plastic coupling nut/thread (housing black, PG7) Basic data Protection class IP 67 (IEC 60529) Strain relief by means of clamping cage Type of termination screw Further information See technical data in the catalog Circular connectors for automation technique DS 280 490-450 For tailor-made systems, Click here.

E Series M12
IEC 60947-5-2

Cable sockets and plugs
for self - assembly

Product features

Inductive or capacitive proximity switches
photoelectric barriers
Pressure-operated switches ect.

Variations

Cable sockets and plugs without LED (housing black, PG7 and PG9)
Cable sockets and connectors, LED insertable (accessories), (housing transparent/topas, PG7)
Cable sockets and connectors with plastic coupling nut/thread (housing black, PG7)

Basic data

Protection class IP 67 (IEC 60529)
Strain relief by means of clamping cage
Type of termination screw

Further information
See technical data in the catalog Circular connectors for automation technique DS 280 490-450
For tailor-made systems, Click here.

Example for placing orders: 933 139-100 ELKA 4012 PG7

Poles Socket Plug Operating
Voltage Comments

Straight
ELKA Angled
ELWIKA Straight
ELST Angled
ELWIST

4 4012 PG 7 933 139-100 933 172-100 933 098-100 933 165-100 UC 250V ( ~ )¹⁾

4012 PG 7 TO 933 210-199 933 173-199 Housing transparent,
accessories LED insert²⁾

4012 K PG 7 933 725-100 933 726-100 933 727-100 933 728-100 Plastic-coupling nut/thread

4012 PG 9 933 169-100 933 174-100 933 162-100 922 166-100

5 5012 PG 7 933 170-100 933 175-100 933 163-100 933 167-100 UC 50V ( ~ )

5012 PG 9 933 171-100 933 176-100 933 164-100 933 168-100

¹⁾ Operating voltage without LED insert, type ELKA 4012 PG7 TO and ELWIKA 4012 PG 7 TO
²⁾ LED insert PNP/normally open 933 405-001 E 2 LED PNP (DC 10...30 V)
LED insert NPN/normally open 933 404-001 E 2 LED NPN (DC 10...30 V)

Poles	Socket	Plug	Operating Voltage	Comments
Straight ELKA	Angled ELWIKA	Straight ELST	Angled ELWIST
4	4012 PG 7	933 139-100	933 172-100	933 098-100	933 165-100	UC 250V ( ~ )¹⁾
4012 PG 7 TO	933 210-199	933 173-199			Housing transparent, accessories LED insert²⁾
4012 K PG 7	933 725-100	933 726-100	933 727-100	933 728-100	Plastic-coupling nut/thread
4012 PG 9	933 169-100	933 174-100	933 162-100	922 166-100
5	5012 PG 7	933 170-100	933 175-100	933 163-100	933 167-100	UC 50V ( ~ )
5012 PG 9	933 171-100	933 176-100	933 164-100	933 168-100
¹⁾ Operating voltage without LED insert, type ELKA 4012 PG7 TO and ELWIKA 4012 PG 7 TO ²⁾ LED insert PNP/normally open 933 405-001 E 2 LED PNP (DC 10...30 V) LED insert NPN/normally open 933 404-001 E 2 LED NPN (DC 10...30 V)

Cable accomodation:: PG7: Ø 4...6mm (0, 160...0,235 inches); PG9: Ø 6...8 mm (0,24...0,315 inches)

Plastic-coupling nut/thread:

standard with type 4012 K PG 7; for all other types on demand

Hirschmann

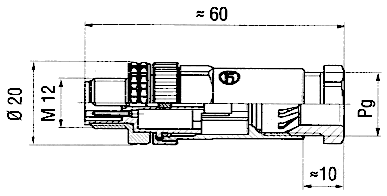

ELKA...PG...

ELWIKA...PG...

ELST...PG...

ELWIST...PG...
