Hirschmann


E Series M12 HiPer
IEC 60947-5-2		 Cable sockets
with molded-on
HiPer lead (PUR)
    Product features
    connection of sensor/actuators
  1. in robot technology
  2. in trailing chain applications
  3. in machine tool and automotive industries

    Variations
  1. cable sockets without LED (housing black, cable orange)

    Basic data
  1. special heavy duty cable with extreme alternating bending strength
  2. solid PUR outer jacket guarantees very good resistance against oil, cleaning solvents and lubricants
  3. radiation treated and flame resistant
  4. halogen free

Further information
See technical data in the catalog HiPer-the heavy duty sensor/actuator lead DS 280-420-493.



Example for placing orders: 933 974-051 ELWIKA-KV 4312 HiPer 034 2m

Poles Cable Material length Socket Angled
ELWIKA-KV		 Operating Voltage
3 4312 HiPer (Voll-Pur) 2m
5m		 933 974-051
933 974-052		 UC 250V (~)
4 4412 HiPer (Voll-Pur) 2m
5m		 933 973-051
933 973-052

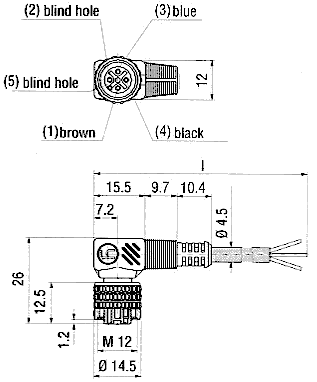

ELWIKA-KV 4312...HiPer

ELWIKA-KV 4412...HiPer
