Hirschmann

E/G Series Interconnection systems IEC 60947-5-2/DIN 43650	Interconnection systems (cable sockets and connectors with molded-on lead)
Product features connection of sensor/actuators Variations connection cable with LED (rectangular connectors) Basic data protection class IP 67 (IEC 60529, central screw with O-ring, otherwise IP 65) high flexible lead (PUR) Further information See technical data in the catalog The endless versality of Hirschmann connecting cables DS 280 420-461. In addition to the types listed,other connecting leads can be supplied on request (approx. 1,000,000 possible combinations).

E/G Series Interconnection systems
IEC 60947-5-2/DIN 43650

Interconnection systems
(cable sockets and connectors
with molded-on lead)

Product features

sensor/actuators

Variations

connection cable with LED (rectangular connectors)

Basic data

protection class IP 67 (IEC 60529, central screw with O-ring, otherwise IP 65)
high flexible lead (PUR)

Further information
See technical data in the catalog The endless versality of Hirschmann connecting cables DS 280 420-461. In addition to the types listed,other connecting leads can be supplied on request (approx. 1,000,000 possible combinations).

We will be pleased to provide advice on the following possible combinations:

E Series: M12/M12; M12/M8; M8/M8
E Series/G Series

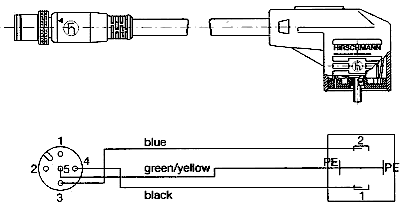

Example for placing orders: 933 480-023 EM 5312/GM 3101 PUR
M12 cable plug, 1.0 m connecting lead, industrial standard design B,
cable socket with integral electronic.

Plug Poles Rectangular Connector

Design A
Din 43 650 Design B
Din 43 650 Industrial
Standard Design C
Din 43 650 Industrial
Standard

M12 Straight 2 933 488-...
EM 3212/
GDM 2201 933 489-...
EM 3212/
GMN 2201 933 486-...
EM 3212/
GM 2201 933 487-...
EM 3212/
GDSN 2201 933 485-...
EM 3212/
GDS 2201

3 933 476-...
EM 5312/
GDM 3101 933 478-...
EM 5312/
GMN 3101 933 480-...
EM 5312/
GM 3101 933 483-...
EM 5312/
GDSN 3101 933 482-...
EM 5312/
GDS 3101

Plug	Poles	Rectangular Connector
Design A Din 43 650	Design B Din 43 650	Industrial Standard	Design C Din 43 650	Industrial Standard
M12 Straight	2	933 488-... EM 3212/ GDM 2201	933 489-... EM 3212/ GMN 2201	933 486-... EM 3212/ GM 2201	933 487-... EM 3212/ GDSN 2201	933 485-... EM 3212/ GDS 2201
3	933 476-... EM 5312/ GDM 3101	933 478-... EM 5312/ GMN 3101	933 480-... EM 5312/ GM 3101	933 483-... EM 5312/ GDSN 3101	933 482-... EM 5312/ GDS 3101

Cable Length Length Order no.
Suffix

Connecting lead are available in standard lengths of
0.3 m/0.6 m/1.0m/1.5 m and 2.0m. A 3-digit suffix corresponding
to the required length should be added to the quoted order ref. no. 0.3 m ...-021

0.6 m ...-022

1.0 m ...-023

1.5 m ...-024

2.0 m ...-025

Cable Length	Length	Order no. Suffix
Connecting lead are available in standard lengths of 0.3 m/0.6 m/1.0m/1.5 m and 2.0m. A 3-digit suffix corresponding to the required length should be added to the quoted order ref. no.	0.3 m	...-021
	0.6 m	...-022
	1.0 m	...-023
	1.5 m	...-024
	2.0 m	...-025
