E Series Interconnection Systems IEC 60947-5-2	Interconnection systems (cable sockets and connectors with molded-on lead)
Product features connection of sensor/actuators to control or I/O-boxes Variations connection cable without LED connection cable with LED Basic data protection class IP 68 (IEC 60529) (protection class IP 67 with snap locking) high flexible lead (PUR) Further information See technical data in the catalog The endless versality of Hirschmann connecting cables DS 280 420-461. In addition to the types listed, other connecting leads can be supplied on request (approx. 1,000,000 possible combinations).

E Series Interconnection Systems
IEC 60947-5-2

Interconnection systems
(cable sockets and connectors
with molded-on lead)

Product features

sensor/actuators to control or I/O-boxes

Variations

connection cable without LED
connection cable with LED

Basic data

protection class IP 68 (IEC 60529)
(protection class IP 67 with snap locking)
high flexible lead (PUR)

Further information
See technical data in the catalog The endless versality of Hirschmann connecting cables DS 280 420-461. In addition to the types listed, other connecting leads can be supplied on request (approx. 1,000,000 possible combinations).

We will be pleased to provide advice on the following possible combinations:

E Series: M12/M12; M12/M8; M8/M8
E Series/G Series

Example for placing orders: 933 553-024 EM 3312/EFS 3308 PUR 034

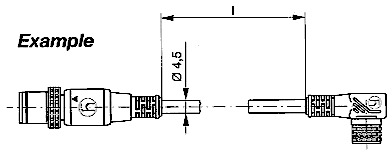

M12 cable plug, 1.5 m connecting lead
M8 cable socket snap locking

Plug Poles Straight Angled Componentry

Socket M8 Snap Locking

M12 Straight 3 933 553-... EM 3312/EFS 3308

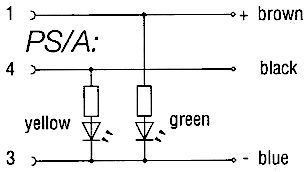

933 554-... EM 3312/EWFS 3308 PS/A

Socket M8 Screw Locking

M12 Straight 3 933 433-... EM 3312/EF 3308 933 434-...EM 3312/EWF 3308

933 435-... EM 3308/EWF 3308 PS/A

Socket M12 Screw Locking

M12 Straight 3 933 423-... EM 3312/EF 4312 933 422-...EM 3312/EWF 4312

933 432-... EM 3312/EWF 4312 PS/A

4 933 427-...EM 4412/EF 4412 933 426-... EM 4412/EWF 4412

5 933 431-...EM 5512/EF 5512 933 430-... EM 5512/EWF 5512

M12 Angled 3 933 421-... EWM 3312/EF 4312 933 420-... EWM 3312/EWF 4312

4 933 425-...EWM 4412/EF 4412 933 424-... EWM 4412/EWF 4412

5 933 429-...EWM 5512/EF 5512 933 428-... EWM 5512/EWF 5512

Plug	Poles	Straight	Angled
Socket M8 Snap Locking
M12 Straight	3	933 553-... EM 3312/EFS 3308
	933 554-... EM 3312/EWFS 3308	PS/A
Socket M8 Screw Locking
M12 Straight	3	933 433-... EM 3312/EF 3308	933 434-...EM 3312/EWF 3308
	933 435-... EM 3308/EWF 3308	PS/A
Socket M12 Screw Locking
M12 Straight	3	933 423-... EM 3312/EF 4312	933 422-...EM 3312/EWF 4312
	933 432-... EM 3312/EWF 4312	PS/A
4	933 427-...EM 4412/EF 4412	933 426-... EM 4412/EWF 4412
5	933 431-...EM 5512/EF 5512	933 430-... EM 5512/EWF 5512
M12 Angled	3	933 421-... EWM 3312/EF 4312	933 420-... EWM 3312/EWF 4312
4	933 425-...EWM 4412/EF 4412	933 424-... EWM 4412/EWF 4412
5	933 429-...EWM 5512/EF 5512	933 428-... EWM 5512/EWF 5512

cable length length order no.
suffix

Connecting lead are available in standard lengths of
0.3 m/0.6 m/1.0 m/1.5 m and 2.0 m. A 3-digit suffix corresponding
to the required length should be added to the quoted order ref. no. 0.3 m ...-021

0.6 m ...-022

1.0 m ...-023

1.5m ...-024

2.0 m ...-025

cable length	length	order no. suffix
Connecting lead are available in standard lengths of 0.3 m/0.6 m/1.0 m/1.5 m and 2.0 m. A 3-digit suffix corresponding to the required length should be added to the quoted order ref. no.	0.3 m	...-021
	0.6 m	...-022
	1.0 m	...-023
	1.5m	...-024
	2.0 m	...-025
