Specifications
Never content to sell the same blocks that everyone else does, BlockMaster Electronics has pushed the
envelope yet again with another innovative series. This time we're targeting a very important segment of
our customer base: the field engineers.
They'll be happy to know that with our Jelly Beans series of terminal blocks, they'll never again have to
worry about the age-old problem of incorrect field wiring. Jelly Beans can be assembled with a different
color for each position, helping to eliminate field installation mistakes.

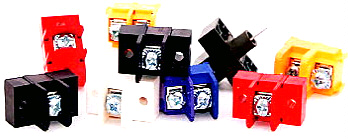

The JB Series are modular, barrier-style terminal blocks that offer the ability to color-code each terminal to
match customer wiring. Single-circuit modules snap together to form nearly infinite circuit configurations,
and each position can be any of 10 available colors. Standard design features include break-resistant

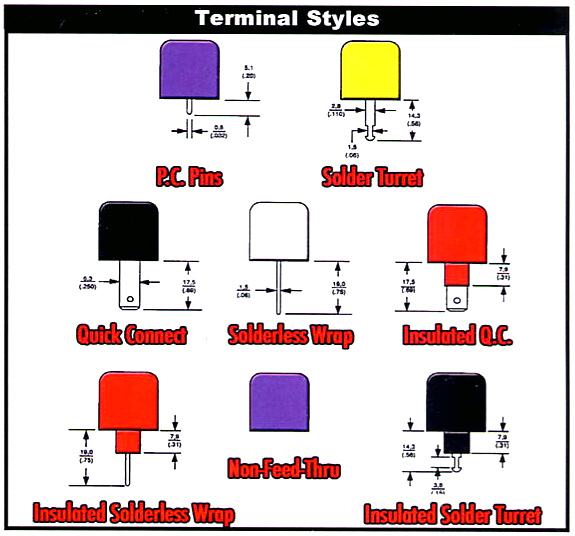

barriers, standoffs for flux cleaning and ready-to-wire screws. A full range of terminal configurations are
offered on industry-standard center-to-center soacinas of 3/8" (0.375" or 9.50 mm). |
JB6
|
| Electrical |
|---|
| Applications: | Suitable for:
Alarm Systems
Motor Controls
Lighting Controls |
| Rated Voltage: | 300V |
| Rated Current: | 20A |
| Wire Size: | 12-22 AWG |
| Operating Temperature: | 130° Max |
| Housing: | Thermoplastic Polyamide (UL94V-0) |
| Terminal: | Brass, Bright Acid Tin over Copper Plating |
| Positions Available: | Unlimited |
| Screw Size: | #6-32, Steel, Zinc Plating with Clear Chromate Coating Undercut Binding Head |
|  |
| Features | |
|---|
| Modular construction for customer-specified length 10 colors available for color-coding applications Standoffs for improved flux removal
3/8" centers (.375" / 9.50mm) UL Recognized - 20A at 300V Wire-ready; raised screws for 12AWG to 22AWG wire. |
 |
 |  |
|---|
|
|---|
