BlockMaster


Specifications

Features:
  1. Regular barrier construction.
  2. Mounting ends available.
  3. UL recognized.
  4. 5 pin styles to choose from.
HI20 Series


Electrical
Current:10A @250V
Wire range:14 to 22 AWG
Withstanding voltage:2000V AC per min.
IR:>500M Ohms (500V DC)
Operating temp:-40°C to +105°C
Torque:8 lb-in
Materials
Housing:Thermoplastic (UL94V-0)
Terminal:Brass, tin plated
Screw:M3.5 combo head w/captive sems plate
Screw material:Steel, Ni plated
Positions available:2 to 26 with mounting ends
2 to 28 no mounting ends
Mounting ends:Available/ø3.3mm

StyleFrontSide
1

centerline
PC

2

solder tail

3

right angle
PC short
bend

5

solder tail

6

extended
wire wrap

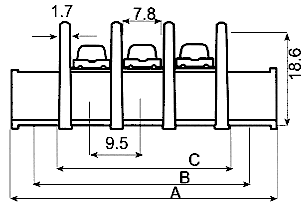

Dimensions
n=number of positions
A=(n x 9.5) + 21
B=(n+1) x 9.5
C=(n x 9.5) +2
