BlockMaster

Specifications
Features:

HD84 Series

Electrical
Current:	15A @250V
Wire range:	14 to 18 AWG
Withstanding voltage:	2000V AC per min.
IR:	>500M Ohms (500V DC)
Operating temp:	-40°C to +105°C
Torque:	7 lb-in
Materials
Housing:	Thermoplastic (UL94V-0)
Terminal:	Brass, tin plated (Gold flash on HD842)
Screw:	M3 combo head w/captive sems plate (Gold flash on HD842)
Screw material:	Steel, Ni plated
Positions available:	2 to 22 with mounting ends 2 to 24 no mounting ends
Mounting ends:	Available/ø3.2mm

HD841 Series

HD842 Series

Dimensions
n=number of positions (per level)
A=(n x 8.25) + 18.5
B=(n + 1) x 8.25
C=(n x 8.25) + 2

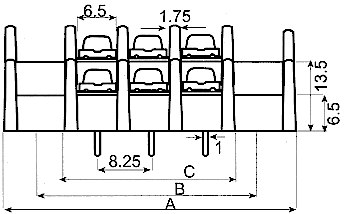

HD841 Series

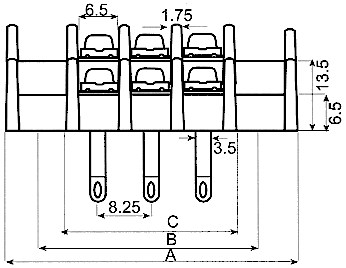

HD842 Series


Dimensions n=number of positions (per level) A=(n x 8.25) + 18.5 B=(n + 1) x 8.25 C=(n x 8.25) + 2
