BlockMaster
Features:
|
HD30 Series
|
| Electrical | |
|---|---|
| Current: | 10A @250V |
| Wire range: | 14 to 22 AWG |
| Withstanding voltage: | 2000V AC per min. |
| IR: | >500M Ohms (500V DC) |
| Operating temp: | -40°C to +95°C |
| Torque: | 12 lb-in |
| Materials | |
| Housing: | Thermoplastic (UL94V-0) |
| Terminal: | Tin plated brass |
| Screw: | M4 sems, Ni plated steel |
| Positions available: | 2 to 26 with or without mounting ends |
| Mounting ends: | Available/ø4mm |
| Style | Front | Side |
|---|---|---|
| 1 centerline |
 |
 |
| 2 solder tail |
 |
 |
| 3 insulated |
 |
 |

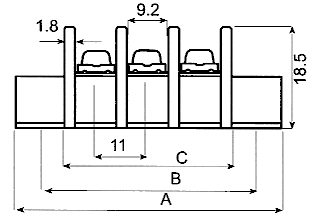

| Dimensions n=number of positions A=(n x 11) + 24 B=(n + 1) x 11 C=(n x 11) + 3 |  |
