Features:
|
HD10 Series |
Electrical | |
---|---|
Current: | 15A @250V |
Wire range: | 14 to 18 AWG |
Withstanding voltage: | 2000V AC per min. |
IR: | >500M Ohms (500V DC) |
Operating temp: | -40°C to +85°C |
Torque: | 7 lb-in |
Materials | |
Housing: | Thermoplastic (UL94V-0) |
Terminal: | Brass, tin plated |
Screw: | M3.5 combo head w/captive sems plate |
Screw material: | Steel, Ni plated |
Positions available: | 2 to 26 with mounting ends 2 to 28 no mounting ends |
Mounting ends: | Available/ø3.8mm |
Style | Front | Side |
---|---|---|
3 off-center |
||
4 extended |
||
5 right angle |
||
6 thru panel |
||
7 centerline |

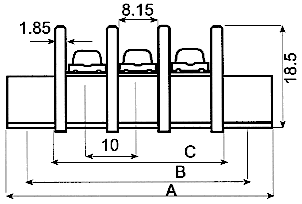

Dimensions n=number of positions A=(n x 10) + 22 B=(n+1) x 10 C=(n x10) + 2 |
Part Numbers
HD103-02PH
HD104-02PH
HD105-02PH
HD106-02PH
HD107-02PH
HD103-03PH
HD104-03PH
HD105-03PH
HD106-03PH
HD107-03PH
HD103-04PH
HD104-04PH
HD105-04PH
HD106-04PH
HD107-04PH
HD103-05PH
HD104-05PH
HD105-05PH
HD106-05PH
HD107-05PH
HD103-06PH
HD104-06PH
HD105-06PH
HD106-06PH
HD107-06PH
HD103-07PH
HD104-07PH
HD105-07PH
HD106-07PH
HD107-07PH
HD103-08PH
HD104-08PH
HD105-08PH
HD106-08PH
HD107-08PH
HD103-09PH
HD104-09PH
HD105-09PH
HD106-09PH
HD107-09PH
HD103-10PH
HD104-10PH
HD105-10PH
HD106-10PH
HD107-10PH
HD103-11PH
HD104-11PH
HD105-11PH
HD106-11PH
HD107-11PH
HD103-12PH
HD104-12PH
HD105-12PH
HD106-12PH
HD107-12PH
HD103-13PH
HD104-13PH
HD105-13PH
HD106-13PH
HD107-13PH
HD103-14PH
HD104-14PH
HD105-14PH
HD106-14PH
HD107-14PH
HD103-15PH
HD104-15PH
HD105-15PH
HD106-15PH
HD107-15PH
HD103-16PH
HD104-16PH
HD105-16PH
HD106-16PH
HD107-16PH
HD103-17PH
HD104-17PH
HD105-17PH
HD106-17PH
HD107-17PH
HD103-18PH
HD104-18PH
HD105-18PH
HD106-18PH
HD107-18PH
HD103-19PH
HD104-19PH
HD105-19PH
HD106-19PH
HD107-19PH
HD103-20PH
HD104-20PH
HD105-20PH
HD106-20PH
HD107-20PH
HD103-21PH
HD104-21PH
HD105-21PH
HD106-21PH
HD107-21PH
HD103-22PH
HD104-22PH
HD105-22PH
HD106-22PH
HD107-22PH
HD103-23PH
HD104-23PH
HD105-23PH
HD106-23PH
HD107-23PH
HD103-24PH
HD104-24PH
HD105-24PH
HD106-24PH
HD107-24PH
HD103-25PH
HD104-25PH
HD105-25PH
HD106-25PH
HD107-25PH
HD103-26PH
HD104-26PH
HD105-26PH
HD106-26PH
HD107-26PH
HD103-27PH
HD104-27PH
HD105-27PH
HD106-27PH
HD107-27PH
HD103-28PH
HD104-28PH
HD105-28PH
HD106-28PH
HD107-28PH
HD103-02P
HD104-02P
HD105-02P
HD106-02P
HD107-02P
HD103-03P
HD104-03P
HD105-03P
HD106-03P
HD107-03P
HD103-04P
HD104-04P
HD105-04P
HD106-04P
HD107-04P
HD103-05P
HD104-05P
HD105-05P
HD106-05P
HD107-05P
HD103-06P
HD104-06P
HD105-06P
HD106-06P
HD107-06P
HD103-07P
HD104-07P
HD105-07P
HD106-07P
HD107-07P
HD103-08P
HD104-08P
HD105-08P
HD106-08P
HD107-08P
HD103-09P
HD104-09P
HD105-09P
HD106-09P
HD107-09P
HD103-10P
HD104-10P
HD105-10P
HD106-10P
HD107-10P
HD103-11P
HD104-11P
HD105-11P
HD106-11P
HD107-11P
HD103-12P
HD104-12P
HD105-12P
HD106-12P
HD107-12P
HD103-13P
HD104-13P
HD105-13P
HD106-13P
HD107-13P
HD103-14P
HD104-14P
HD105-14P
HD106-14P
HD107-14P
HD103-15P
HD104-15P
HD105-15P
HD106-15P
HD107-15P
HD103-16P
HD104-16P
HD105-16P
HD106-16P
HD107-16P
HD103-17P
HD104-17P
HD105-17P
HD106-17P
HD107-17P
HD103-18P
HD104-18P
HD105-18P
HD106-18P
HD107-18P
HD103-19P
HD104-19P
HD105-19P
HD106-19P
HD107-19P
HD103-20P
HD104-20P
HD105-20P
HD106-20P
HD107-20P
HD103-21P
HD104-21P
HD105-21P
HD106-21P
HD107-21P
HD103-22P
HD104-22P
HD105-22P
HD106-22P
HD107-22P
HD103-23P
HD104-23P
HD105-23P
HD106-23P
HD107-23P
HD103-24P
HD104-24P
HD105-24P
HD106-24P
HD107-24P
HD103-25P
HD104-25P
HD105-25P
HD106-25P
HD107-25P
HD103-26P
HD104-26P
HD105-26P
HD106-26P
HD107-26P
HD103-27P
HD104-27P
HD105-27P
HD106-27P
HD107-27P
HD103-28P
HD104-28P
HD105-28P
HD106-28P
HD107-28P
