BlockMaster
Features:
|
FTB70 Series
|
| Electrical | |
|---|---|
| Current: | 10A @250V |
| Wire range: | 16 to 22 AWG |
| Withstanding voltage: | 2000V AC per min. |
| IR: | >500M Ohms (500V DC) |
| Operating temp: | -40°C to +95°C |
| Torque: | 7 lb-in |
| Materials | |
| Housing: | Thermoplastic (UL94V-0) |
| Terminal: | Brass, tin plated |
| Screw: | M3 combo head w/captive sems plate |
| Screw material: | Steel, Ni plated |
| Positions available: | 2 to 24 with or without mounting ends |
| Mounting ends: | Available/ø3mm |
| Style | Front | Side |
|---|---|---|
| 1 right angle |
 |
 |
| 2 off-center |
 |
 |
| 3 centerline |
 |
 |
| 5 solder tail |
 |
 |

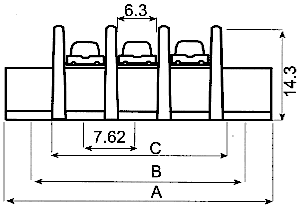

| Dimensions n=number of positions A=(n x 7.62) + 15.3 B=(n+1) x 7.62 C=(n x 7.62) + 1.5 |  |
