BlockMaster


Specifications

Features:
  1. Regular barrier construction.
  2. Mounting ends available.
  3. UL and CSA recognized.
  4. 4 pin styles to choose from.
  5. Gold plating available.
FTB10 Series

Electrical
Current:10A @250V
Wire range:14 to 22 AWG
Withstanding voltage:2000V AC per min.
IR:>500M Ohms (500V DC)
Operating temp:-40°C to +85°C
Torque:7 lb-in
Materials
Housing:Thermoplastic (UL94V-0)
Terminal:Brass, tin plated
Screw:M3.5 combo head w/captive sems plate
Screw material:Steel, Ni plated
Positions available:2 to 24 with mounting ends
2 to 26 no mounting ends
Mounting ends:Available/ø4mm

StyleFrontSide
A

right angle
PC
B

extended
wire wrap
C

off-center
PC
D

solder tail
E

short wire
wrap

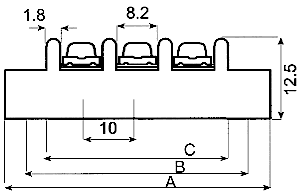

Dimensions
n=number of positions
A=(n x 10) + 19
B=(n+1) x 10
C=(n x10) + 2
