BlockMaster
Specifications
Features:
- High power barrier block.
- Regular barrier w/cover construction.
- Mounting ends available.
- Large 13mm center spacing.
- UL recognized.
- 3 pin styles to choose from.
- Accepts #10 AWG.
|
DT7C Series
|
| Electrical |
|---|
| Current: | 40A @600V |
| Wire range: | 12 to 22 AWG |
| Withstanding voltage: | 2000V AC per min. |
| IR: | >1000M Ohms (500V DC) |
| Operating temp: | -40°C to +130°C |
| Torque: | 13.8 lb-in |
| Materials |
|---|
| Housing: | Polyester (UL94V-0) |
| Terminal: | Brass, tin plated |
| Screw: | M4 combo head w/captive sems plate |
| Screw material: | Steel, Ni plated |
| Cover material: | PVC transparent |
| Positions available: | 2 to 10 with mounting ends
2 to 12 no mounting ends |
| Mounting ends: | Available/ø4.5mm |

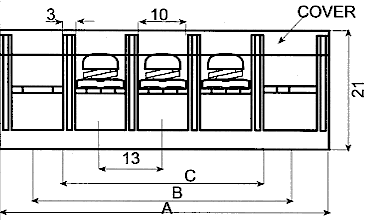

Dimensions
n=number of positions
A=(n x 13) + 29
B=(n+1) x 13
C=(n x 13) + 3 |  |
Part Numbers
DT7C-A01W-02
DT7C-A02W-02
DT7C-A14W-02
DT7C-A01W-03
DT7C-A02W-03
DT7C-A14W-03
DT7C-A01W-04
DT7C-A02W-04
DT7C-A14W-04
DT7C-A01W-05
DT7C-A02W-05
DT7C-A14W-05
DT7C-A01W-06
DT7C-A02W-06
DT7C-A14W-06
DT7C-A01W-07
DT7C-A02W-07
DT7C-A14W-07
DT7C-A01W-08
DT7C-A02W-08
DT7C-A14W-08
DT7C-A01W-09
DT7C-A02W-09
DT7C-A14W-09
DT7C-A01W-10
DT7C-A02W-10
DT7C-A14W-10
DT7C-A01W-11
DT7C-A02W-11
DT7C-A14W-11
DT7C-A01W-12
DT7C-A02W-12
DT7C-A14W-12
DT7C-B01W-02
DT7C-B02W-02
DT7C-B14W-02
DT7C-B01W-03
DT7C-B02W-03
DT7C-B14W-03
DT7C-B01W-04
DT7C-B02W-04
DT7C-B14W-04
DT7C-B01W-05
DT7C-B02W-05
DT7C-B14W-05
DT7C-B01W-06
DT7C-B02W-06
DT7C-B14W-06
DT7C-B01W-07
DT7C-B02W-07
DT7C-B14W-07
DT7C-B01W-08
DT7C-B02W-08
DT7C-B14W-08
DT7C-B01W-09
DT7C-B02W-09
DT7C-B14W-09
DT7C-B01W-10
DT7C-B02W-10
DT7C-B14W-10
DT7C-B01W-11
DT7C-B02W-11
DT7C-B14W-11
DT7C-B01W-12
DT7C-B02W-12
DT7C-B14W-12
