BlockMaster
Specifications
Features:
- High power terminal block.
- 2 pins per position.
- UL recognized.
- 11mm spacing.
- Accepts #10 AWG.
|
DT66 Series
|
| Electrical |
|---|
| Current: | 40A @600V |
| Wire range: | 10 to 18 AWG |
| Withstanding voltage: | 2000V AC per min. |
| IR: | >1000M Ohms (500V DC) |
| Operating temp: | -40°C to +130°C |
| Torque: | 13.8 lb-in |
| Materials |
|---|
| Housing: | Polyester (UL94V-0) |
| Terminal: | Brass, tin plated |
| Screw: | M4 combo head w/captive sems plate |
| Screw material: | Steel, Ni plated |
| Positions available: | 2 to 26 with mounting ends |
| Mounting ends: | Not Available |
 |
 |  |

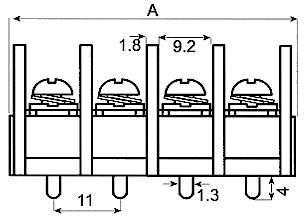

Dimensions
n=number of contact positions
A=(n x 11) + 3 |  |
Part Numbers
DT66-B01W-02
DT66-B01W-03
DT66-B01W-04
DT66-B01W-05
DT66-B01W-06
DT66-B01W-07
DT66-B01W-08
DT66-B01W-09
DT66-B01W-10
DT66-B01W-11
DT66-B01W-12
DT66-B01W-13
DT66-B01W-14
DT66-B01W-15
DT66-B01W-16
DT66-B01W-17
DT66-B01W-18
DT66-B01W-19
DT66-B01W-20
DT66-B01W-21
DT66-B01W-22
DT66-B01W-23
DT66-B01W-24
DT66-B01W-25
DT66-B01W-26
