BlockMaster
Features:
|
DT4C Series
|
| Electrical | |
|---|---|
| Current: | 20A @300V |
| Wire range: | 12 to 22 AWG |
| Withstanding voltage: | 2000V AC per min. |
| IR: | >1000M Ohms (500V DC) |
| Operating temp: | -40°C to +130°C |
| Torque: | 10 lb-in |
| Materials | |
| Housing: | Polyester (UL94V-0) |
| Terminal: | Brass, tin plated |
| Screw: | M3.5 combo head w/captive sems plate |
| Screw material: | Steel, Ni plated |
| Cover material: | PVC transparent |
| Positions available: | 2 to 10 with mounting ends 2 to 12 no mounting ends |
| Mounting ends: | Available/ø3.5mm |
| Style | Front | Side |
|---|---|---|
| 01 centerline |
 |
 |
| 02 solder tail |
 |
 |
| 14 right angle |
 |
 |

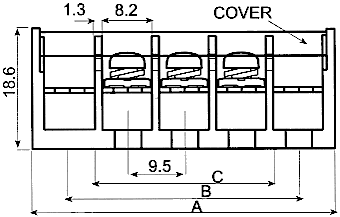

| Dimensions n=number of positions A=(n x 9.5) + 21.5 B=(n + 1) x 9.5 C=(n x 9.5) + 2.5 |  |
