BlockMaster


Specifications

Features:
  1. CIM headers for use with CIF and CVF plugs.
  2. 2 to 25 position single mold (5/5.08).
  3. 2 to 12 position single mold (7.5/7.62).
  4. 4 styles available.
  5. Key coding capable.
  6. Housing is resistant to chlorinated solvents, with no dioxin or detrimental to health halogens.
  7. Every position of this product is mechanically and electrically tested during assembly to ensure a 100% defect free product.
  8. Minimum 5 microns of tin plating on terminal for easy soldering.

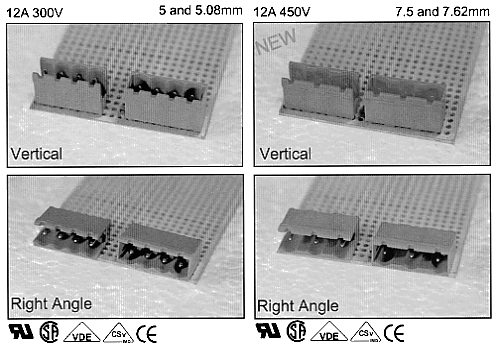

CIM Series

Electrical
Current (5/5.08):12A @300V
Current(7.5/7.62):12A @ 450V
Pin dimension:1mm x 1mm
CR:<15m ohms
IR:>109 ohms (500V DC)
Operating temp:-40°C to+110°C
PCB holes:min 1.4mm
PCB thickness:max 2.4mm
Climactic category:40/110/21 Acc. to IEC 68-1
Insertion force:max 3 N
Disconnecting force:min 1.5N
Materials
Housing:Polyamide 6, 6 (UL94V-0)
Terminal pin:Bronze, Tin plated
Colors Available:Green



Marking

Consult Beckwith Electronics for marking options.







CIM Headers 5 and 5.08mm

(Mates with COF, CIF and CIF heasers)

StyleFrontSide
0P

closed end
vertical
0A

open end
vertical
9P

closed end
right angle
9A

open end
right angle

Dimensions
n=number of poles
L=(n-1) x 5 (for 5mm spacing)
L=(n-1) x 5.08 (for 5.08mm spacing)

Also available in 10 and 10.16mm centers.
Contact BECKWITH ELECTRONICS for more information.




CIM Headers 7.5 and 7.62mm

(Mates with COF, CVF and CIF headers)
StyleFrontSide
OP

closed end
vertical
OA

open end
vertical
9P

closed end
right angle
9A

open end
right angle

Dimensions
n=number of poles
L=(n-1) x 7.5 (for 7.5mm spacing)
L=(n-1) x 7.62 (for 7.62mm spacing)
