BlockMaster


Specifications

Features:
  1. Accepts 2 wires per position (common).
  2. Available in several colors for coding positions to wire colors.
  3. Available with or without push button.
  4. 1 position modular blocks.
  5. 2 pins per pole for stability.
675-Dual Series

Electrical
Current:10A @300V
Wire range:18 to 24 Sol
Wire range:18 to 20 Str
Wire section (mm2):2 x 0.25 to 0.75mm2
Pin dimension:0.8mm x 0.5mm
Dielectric strength:4kV
IR:>5M ohms (500V DC)
Operating temp:-40°C to+105°C
Stripping length:9mm
PCB holes:min 1.1mm
PCB thickness:max 2.4mm
Materials
Housing/button:Polyamide 6, 6 (UL94V-0)
Contact spring:Stainless steel
Terminal pins:Brass, silver and tin plated

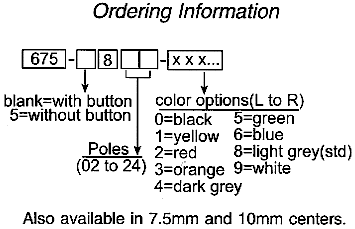

Colors Available:Gray (standard) for others see how to order

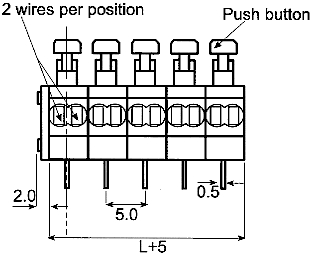

Dimensions
n=number of poles
L=(n-1) x 5

Also available in 7.5mm and 10mm centers.
