Hurst Manufacturing

A & AB Series Reversible Permanent Magnet Synchronous Motors

SYNCHRONOUS MOTORS:
A and AB Series

Reversible Permanent Magnet, Synchronous Specifications

Direct drive 60Hz models have speeds of either 300 RPM or 600 RPM. Sleeve bearings are standard. Both geared and direct drive models are available with high torque rotors. Click here for gear train construction details.

These motors, among the most popular in the Hurst Line, are designed for heavy duty and are widely used in computer peripheral equipment, chart drives, medical instruments and a great variety of industrial applications.

Model	Part Number	Stock Item	Speed @ Output Shaft (rpm)	Rated Torque (oz-in)	Input Power (watts)	Capacitor Value (mfd)	Full Load Temp. Rise (C)	Weight (oz)
A	3001-001	X	300	2.0	3	.25	21	6.8
A	3009-001		300	2.7	3	.25	21	6.8
AB	3005-001	X	600	2.3	5	.50	36	6.8
AB	3011-001		600	3.75	6.5	.62	43	6.8

Bold face listings indicate Hi-Torque rotor.

Model	Part Number	Stock Item	Speed @ Output Shaft (rpm)	Rated Torque (oz-in)	Input Power (watts)	Capacitor Value (mfd)	Weight (oz)
A	3002-001	X	1	150*	3	.25	11
A	3002-003	X	2	131*	3	.25	11
A	3002-005	X	4	110*	3	.25	11
A	3002-007	X	6	74	3	.25	11
A	3002-008	X	8	55	3	.25	11
A	3002-009	X	10	44	3	.25	11
A	3002-010	X	12	37	3	.25	11
A	3002-013	X	20	24	3	.25	11
A	3002-015	X	30	16	3	.25	11
A	3002-016	X	60	8.1	3	.25	11
A	3002-020	X	120	4.0	3	.25	11
A	3014-002		6	87	3	.25	11
A	3014-003		8	65	3	.25	11
A	3014-004		10	52	3	.25	11
A	3014-005		12	43.2	3	.25	11
A	3014-008		20	28.5	3	.25	11
A	3014-010		30	19	3	.25	11
A	3014-012		60	9.5	3	.25	11
A	3014-016		120	4.75	3	.25	11
AB	3006-002	X	6	105	5	.50	11
AB	3006-004	X	10	88	5	.50	11
AB	3006-005	X	12	73	5	.50	11
AB	3006-007	X	20	44	5	.50	11
AB	3006-009	X	30	29	5	.50	11
AB	3006-012	X	50	19	5	.50	11
AB	3006-013	X	60	16	5	.50	11
AB	3006-014	X	120	8	5	.50	11
AB	3006-016	X	180	5.4	5	.50	11
AB	3006-017	X	200	4.8	5	.50	11
AB	3006-019	X	300	3.2	5	.50	11
AB	3013-002		10	95*	6.5	.62	11
AB	3013-003		12	91*	6.5	.62	11
AB	3013-007		20	72	6.5	.62	11
AB	3013-009		30	48	6.5	.62	11
AB	3013-012		50	31.5	6.5	.62	11
AB	3013-001		60	26	6.5	.62	11
AB	3013-014		120	13	6.5	.62	11
AB	3013-016		180	8.75	6.5	.62	11
AB	3013-017		200	7.75	6.5	.62	11
AB	3013-019		300	5.25	6.5	.62	11

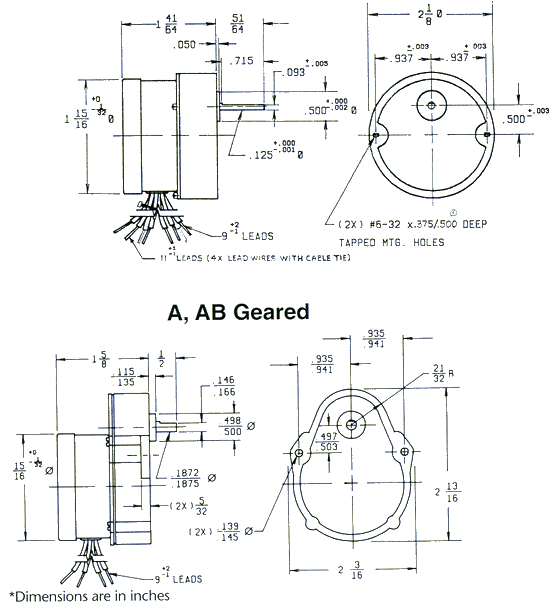

Geared Synchronous Motors

Model Part
Number Stock
Item Speed @
Output
Shaft
(rpm) Rated
Torque
(oz-in) Input
Power
(watts) Capacitor
Value
(mfd) Weight
(oz)

A 3002-001 X 1 150* 3 .25 11

A 3002-003 X 2 131* 3 .25 11

A 3002-005 X 4 110* 3 .25 11

A 3002-007 X 6 74 3 .25 11

A 3002-008 X 8 55 3 .25 11

A 3002-009 X 10 44 3 .25 11

A 3002-010 X 12 37 3 .25 11

A 3002-013 X 20 24 3 .25 11

A 3002-015 X 30 16 3 .25 11

A 3002-016 X 60 8.1 3 .25 11

A 3002-020 X 120 4.0 3 .25 11

A 3014-002 6 87 3 .25 11

A 3014-003 8 65 3 .25 11

A 3014-004 10 52 3 .25 11

A 3014-005 12 43.2 3 .25 11

A 3014-008 20 28.5 3 .25 11

A 3014-010 30 19 3 .25 11

A 3014-012 60 9.5 3 .25 11

A 3014-016 120 4.75 3 .25 11

AB 3006-002 X 6 105 5 .50 11

AB 3006-004 X 10 88 5 .50 11

AB 3006-005 X 12 73 5 .50 11

AB 3006-007 X 20 44 5 .50 11

AB 3006-009 X 30 29 5 .50 11

AB 3006-012 X 50 19 5 .50 11

AB 3006-013 X 60 16 5 .50 11

AB 3006-014 X 120 8 5 .50 11

AB 3006-016 X 180 5.4 5 .50 11

AB 3006-017 X 200 4.8 5 .50 11

AB 3006-019 X 300 3.2 5 .50 11

AB 3013-002 10 95* 6.5 .62 11

AB 3013-003 12 91* 6.5 .62 11

AB 3013-007 20 72 6.5 .62 11

AB 3013-009 30 48 6.5 .62 11

AB 3013-012 50 31.5 6.5 .62 11

AB 3013-001 60 26 6.5 .62 11

AB 3013-014 120 13 6.5 .62 11

AB 3013-016 180 8.75 6.5 .62 11

AB 3013-017 200 7.75 6.5 .62 11

AB 3013-019 300 5.25 6.5 .62 11

*Maximum recommended gear train loading. Bold face listings indicate Hi-Torque rotor.
