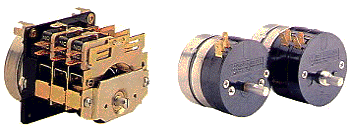

CYCLE AND INTERVAL TIMERS: M Series |
| TIMING MOTORS | |
Cost effective solutions to difficult timing applications

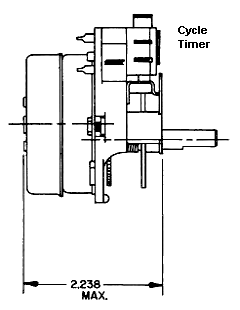

CYCLE TIMER:
Controls 3 to 6, 15 amp, SPDT
Switches with adjustable CAMS
Two tapped holes for rear panel mounting
Numerous cycle times available
CW or CCW rotation

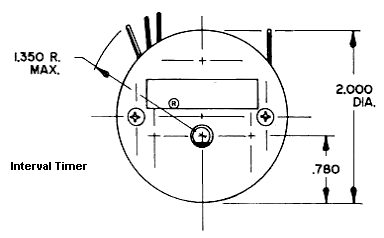

INTERVAL TIMER:
"Count Down" times of 15, 30 or 60 min.
Non-timed "Hold" position
Mounting: 3/8-32 threaded bushing or tapped inserts
 |  |
 |  |
