TIMING MOTORS: M Series This Series has been Discontinued |
| TIMING MOTORS | |
Two new low cost motors with traditional Hurst quality
Torque to 30 oz/in
2 Gear train styles
CW or CCW rotation
Choice of electronically biased or rugged electromechanical directional systems
Low cost permanent magnet synchronous models in popular sizes and mountings, voltages and frequencies, to interchange directly with familiar types.

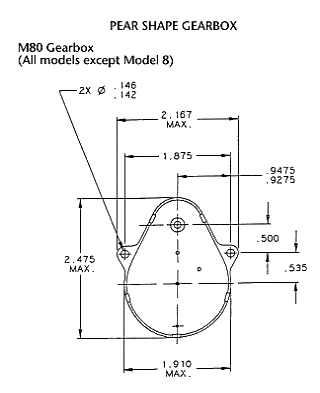

NOTE: All models listed below are pear shape gearboxes. Consult Beckwith Electronics for round style.
M Series Discontinued for reference only
| Model | Part Number |
Stock | Output Speed |
Voltage | HZ | Input Watts |
Torque | Rotation |
|---|---|---|---|---|---|---|---|---|
| M002 | M002-P001 | 50/60 | 115 | 50/60 | 3W | 5 | CCW | |
| M002 | M002-P002 | X | 50/60 | 115 | 50/60 | 3W | 5 | CW |
| M002 | M002-P003 | 25/30 | 115 | 50/60 | 3W | 13 | CCW | |
| M002 | M002-P004 | X | 25/30 | 115 | 50/60 | 3W | 13 | CW |
| M002 | M002-P005 | 10/12 | 115 | 50/60 | 3W | 20 | CCW | |
| M002 | M002-P006 | X | 10/12 | 115 | 50/60 | 3W | 20 | CW |
| M002 | M002-P007 | 8.33/10 | 115 | 50/60 | 3W | 5 | CCW | |
| M002 | M002-P008 | X | 8.33/10 | 115 | 50/60 | 3W | 5 | CW |
| M002 | M002-P009 | 5/6 | 115 | 50/60 | 3W | 5 | CCW | |
| M002 | M002-P010 | X | 5/6 | 115 | 50/60 | 3W | 5 | CW |
| M004 | M002-P001 | 1.6712 | 120 | 2.5 | 2.5 | 5 | CCW | |
| M004 | M002-P002 | X | 1.6712 | 120 | 2.5 | 2.5 | 5 | CW |
| M004 | M002-P003 | .83/1 | 120 | 2.5 | 2.5 | 20 | CCW | |
| M004 | M002-P004 | X | .83/1 | 120 | 2.5 | 2.5 | 20 | CW |
| M004 | M002-P005 | .42/.5 | 120 | 2.5 | 2.5 | 5 | CCW | |
| M004 | M002-P006 | X | .42/.5 | 120 | 2.5 | 2.5 | 5 | CW |
| M004 | M002-P007 | .028/.033 | 120 | 2.5 | 2.5 | 5 | CCW | |
| M004 | M002-P008 | X | .028/.033 | 120 | 2.5 | 2.5 | 5 | CW |
 |  |
 |  |
