Hurst Manufacturing


H 23S Specifications
Mounting Flange:NEMA17
Step angle:1.8°
Positional Accuracy:+ 5% max.
Number of Phases:2 or 4 (4 Phase standard)
Temperature Rise:80 °C max
Insulation Resistance:100M ohms at 500VDC for 1 minute
Dielectric Strength:800VAC for 1 minute
Insulation Class:Class B
Number of lead wires:6 lead uni-polar, bi-polar upon request
Lead wire:UL3265 AWG#22
Operation Ambient Temp:      -l0°C ~ +50°C
Radial Play:0.03 mm max at 0.5 kg load
Axial Play:0.08 mm max at 0.7 kg load

H 23S

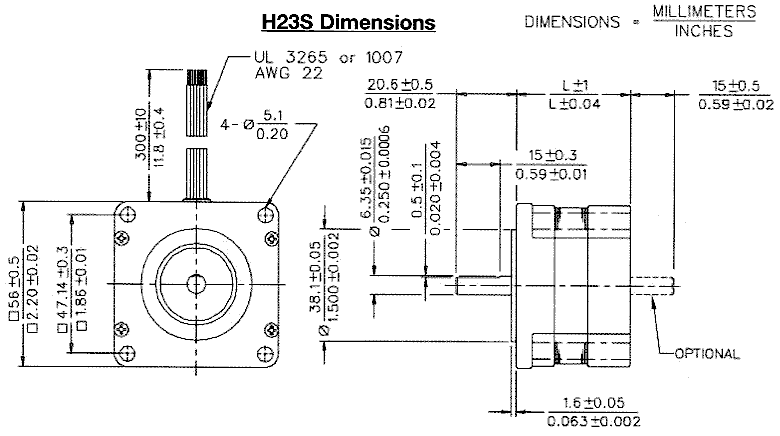

H23S Mechanical Drawing

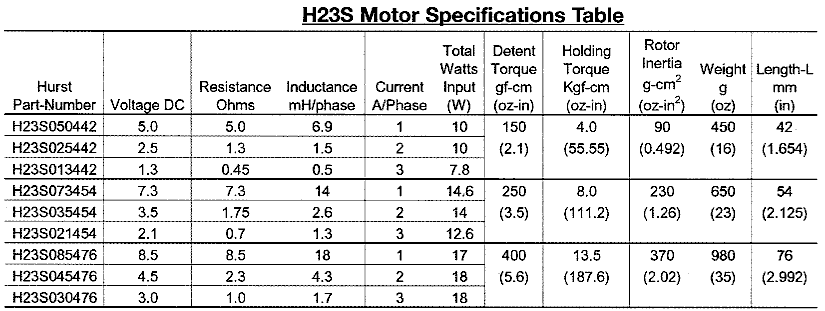

H23S Motor Specifications

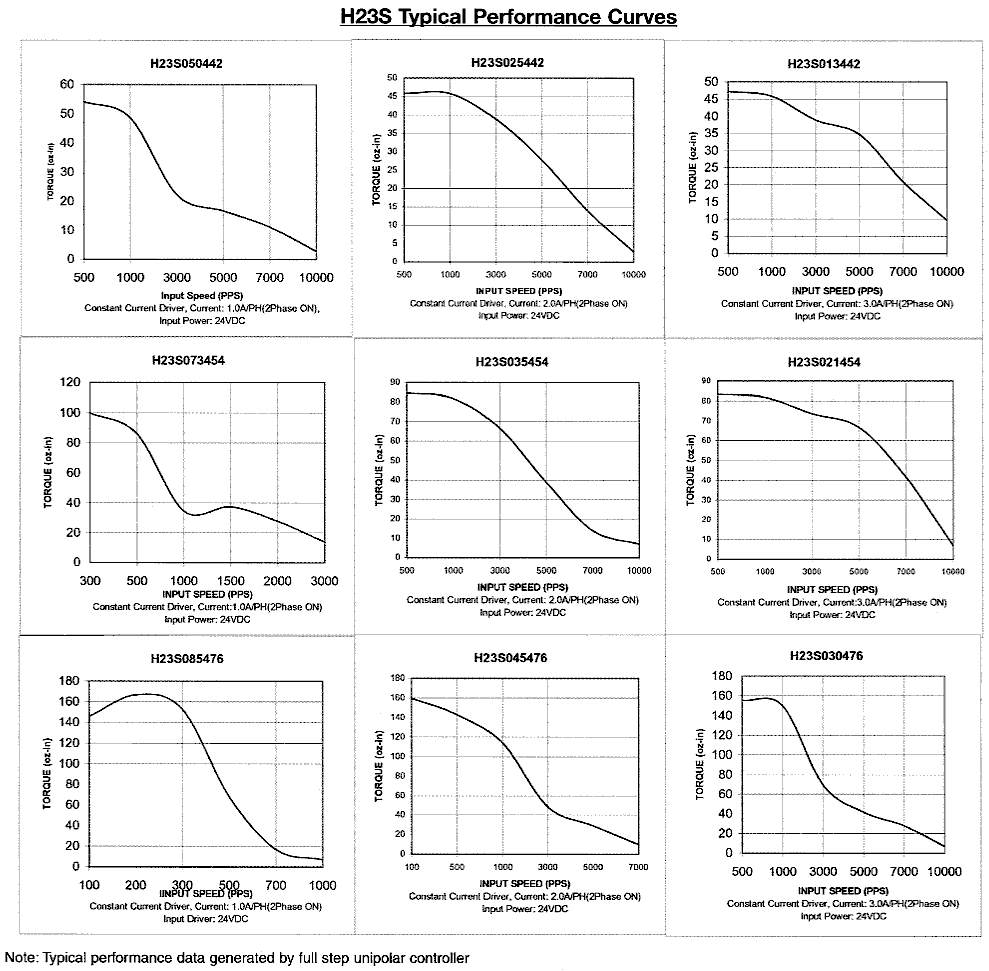

H23S Preformance Curves

H 23S Hybrid Options
 Motor FamilyFrame SizePhase VoltagePhaseLength
OptionsHybrid Stepper23S=23mm013=1.3VDC
021=2.1VDC
025=2.5VDC
030=3.0VDC
035=3.5VDC
045=4.5VDC
050=5.0VDC
073=7.3VDC
085=8.5VDC
4=4 Phase Unipolar
2=2 Phase Bi-Polar
42=42mm
54=54mm
76=76mm
ExampleH23S050442

Full Step (2 Phase)
CW Rotation viewing Mounting End
SetpA (red)B (yellow)/A (Blue)/B (Brown)
0OnOn
1 OnOn
2  OnOn
3On  On
4OnOn
