Reluctance Synchronous, Torque to 250 oz-in. at 1RPM: KS Series |

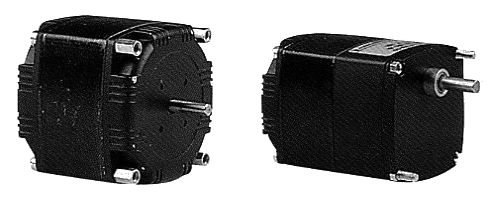

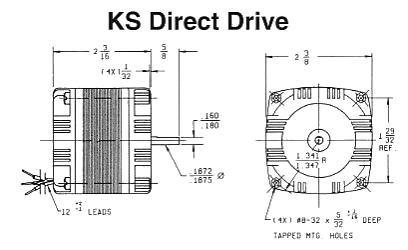

A direct replacement for other motors of this type, KS Series motors are available for both direct drive and geared applications. Direct drive models offer a 60Hz synchronous speed of 1800 RPM. Both direct drive and geared motors are reversible, designed for continuous operation and require no maintenance lubrication. Motors provide a NEMA type 2-11 mounting.

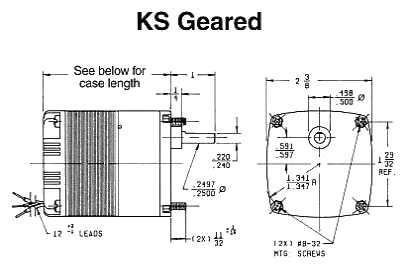

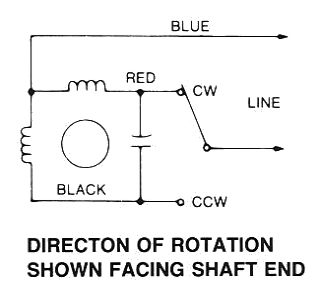

Geared models have a "Heli-Spur" combination with the primary gear stage helical and the subsequent stages, spur. This gearing design provides for quiet, efficient operation. Maximum gear train loading is 250 ounce-inches at 1 RPM. Motors listed are 115 VAC at 60 Hz and require a capacitor.
| Model | Part Number |
Stock Item |
Speed (rpm) |
Power (watts) |
Capacitor Value (mfd) |
Rated Torque (oz-in) |
Full Load Temp. Rise (oC) |
Weight (oz) |
Length (in) |
|---|---|---|---|---|---|---|---|---|---|
| KS | 2422-535 | X | 1 | 7.5 | .85 | 250* | 34 | 34 | 2 17/32 |
| KS | 2422-563 | X | 1.5 | 7.5 | .85 | 230* | 34 | 34 | 2 17/32 |
| KS | 2422-536 | X | 2 | 7.5 | .85 | 216 | 34 | 34 | 2 17/32 |
| KS | 2422-537 | X | 3 | 7.5 | .85 | 144 | 34 | 34 | 2 17/32 |
| KS | 2422-538 | X | 4 | 7.5 | .85 | 108 | 34 | 34 | 2 17/32 |
| KS | 2432-541 | X | 6 | 10 | 1.3 | 166 | 32 | 42 | 3 1/3 |
| KS | 2432-543 | X | 10 | 10 | 1.3 | 100 | 32 | 42 | 3 1/3 |
| KS | 2432-547 | X | 15 | 10 | 1.3 | 66 | 32 | 42 | 3 1/3 |
| KS | 2432-553 | X | 25 | 10 | 1.3 | 43 | 32 | 42 | 3 1/3 |
| KS | 2432-555 | X | 30 | 10 | 1.3 | 36 | 32 | 42 | 3 1/3 |
| KS | 2432-557 | X | 60 | 10 | 1.3 | 18 | 32 | 42 | 3 1/3 |
| KS | 2442-559 | X | 100 | 10 | 1.3 | 11.5 | 32 | 40 | 2 7/8 |
| KS | 2422-560 | X | 150 | 10 | 1.3 | 7.7 | 32 | 40 | 2 7/8 |
| KS | 2422-561 | X | 200 | 10 | 1.3 | 5.7 | 32 | 40 | 2 7/8 |
| KS | 2442-562 | X | 300 | 10 | 1.3 | 3.8 | 32 | 40 | 2 7/8 |
| KS | 2412-588 | X | 1800 | 10 | 1.3 | .85 | 32 | 34 | 2 3/16 |
