Hurst Manufacturing

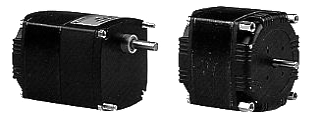

KH and KN Series AC Non-Synchronous Motor High or Normal Slip, AC Non-Synchronous:
KH and KN Series

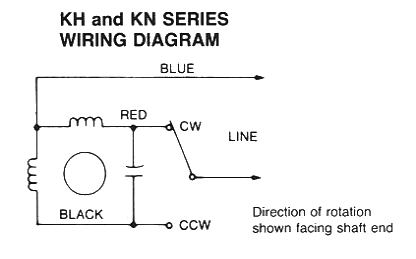

KH Series (high slip) and KN Series (normal slip) non-synchronous motors are direct replacements for other motors of this type. Both provide a NEMA 2-11 mounting, permanent lubrication, "Heli-Spur" gearing (see KS Series), and reversible (capacitor furnished with 115V, 60Hz models). All motors are designed for continuous duty.
KH Series motors ar usually employed where high starting torque, rapid reversal and/or dynamic braking is required.

KN Series motors have much greater output torque than synchronous motors, maintain relatively uniform speed but do not have synchronous timing characteristics. Motors listed are 115 VAC at 60 Hz and require a capacitor.

KH Series is Discontinued for reference only

KH Series Specifications High Slip, Reversible, Non-Synchronous

Model Part
Number
Status Speed
(rpm)
Power
(watts)
Capacitor
Value
(mfd)
Rated
Torque
(oz-in)
Stall
Torque
(oz-in)
Full
Load
Temp. Rise
(oC)
Case
Length
(in)
Weight
(oz)
KH 2423-003 Discontinued
for reference only
.8 8.5 .85 250* # 29 2 17/32 34
KH 2423-004 Discontinued
for reference only
1.2 8.5 .85 250* # 29 2 17/32 34
KH 2423-006 Discontinued
for reference only
2.3 8.5 .85 212* # 29 2 17/32 34
KH 2423-009 Discontinued
for reference only
4.5 8.5 .85 175* # 29 2 17/32 34
KH 2423-010 Discontinued
for reference only
7.5 8.5 .85 105 200 29 2 17/32 34
KH 2433-012 Discontinued
for reference only
10 12 1.3 164 312 35 3 1/32 42
KH 2433-017 Discontinued
for reference only
17 8.5 .85 45 86 35 2 17/32 34
KH 2433-018 Discontinued
for reference only
17 12 1.3 106 200 35 3 1/32 42
KH 2423-019 Discontinued
for reference only
20 8.5 .85 38 72 35 2 1/32 34
KH 2433-020 Discontinued
for reference only
20 12 1.3 88 168 35 3 1/32 42
KH 2423-021 Discontinued
for reference only
40 8.5 .85 29 36 35 2 17/32 34
KH 2433-022 Discontinued
for reference only
40 12 1.3 44 84 35 3 1/32 42
KH 2443-024 Discontinued
for reference only
67 12 1.3 28 53 35 2 7/8 40
KH 2443-027 Discontinued
for reference only
200 12 1.3 9.5 18 35 2 7/8 40
KH 2403-001 Discontinued
for reference only
1200 8.5 .85 .9 1.8 35 1 11/16 25
KH 2413-002 Discontinued
for reference only
1200 12 1.3 2.1 4.0 35 2 3/16 34
*Maximum Gear Train Loading.
#Cannot be Stalled.

KN Series Specifications Non Slip, Reversible, Non-Synchronous
Model Part
Number
Stock
Item
Speed
(rpm)
Power
(watts)
Capacitor
Value
(mfd)
Rated
Torque
(oz-in)
Full
Load
Temp.
Rise
(oC)
Case
Length
(in)
Weight
(oz)
Voltage
KN 2472-627   .9 8.5 .85 250* 29 2 17/32 34 24
KN 2472-591   .9 8.5 .85 250* 29 2 17/32 34 115
KN 2472-592   1.9 8.5 .85 220* 29 2 17/32 34 115
KN 2472-593   2.8 8.5 .85 205* 29 2 17/32 34 115
KN 2472-596   5.5 8.5 .85 178* 29 2 17/32 34 115
KN 2482-599   8.8 11 1.3 160* 32 3 1/32 42 115
KN 2482-603   13 11 1.3 150* 32 3 1/32 42 115
KN 2482-609   22 11 1.3 125 32 3 1/32 42 115
KN 2482-611   26 11 1.3 105 32 3 1/32 42 115
KN 2482-613   52 11 1.3 54 32 3 1/32 42 115
KN 2492-615   86 11 1.3 35 32 2 7/8 40 115
KN 2492-616   130 11 1.3 24 32 2 7/8 40 115
KN 2492-618   260 11 1.3 12 32 2 7/8 40 115
KN 2462-590   1550 11 1.3 2.4 32 2 3/16 34 115
*Maximum Gear Train Loading.
