Hurst Manufacturing

Discontinued for reference only

	SYNCHRONOUS MOTORS: DA and DB Series
REVERSIBLE, HYSTERESIS SYNCHRONOUS

Heavy duity DA abd DB Series gear motors maintain timing accuracy and are offered in a very broad range of shaft speeds from 120RPM through 24 RPD. These motors are recommended especially for applications requiring high gear torque ratings (100 oz-in maximum) and small size (DA case size: 2 1/2" dia. x 1 3/4" depth). Add 1/4" to depth for DB case.

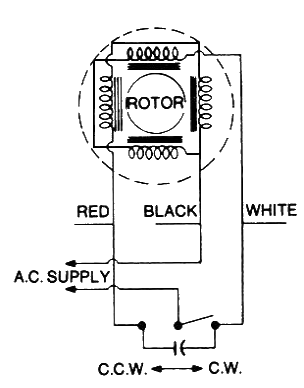

Gear trains are of the same high-quality components and construction as described for the EA and CA Series. All motors are reversible. Models listed are designed for 115V, 60 Hz operation, a capacitor is required for operation.

Heavy Duty Motors for CW or CCW Timing

Model Part
Number Speed @
Output
Shaft
(rpm) Rated
Pull-Out
Torque
(oz-in) Input
Power
(watts) Capacitor
Value
(mfd) Temp.
Rise C.
Full
Load Weight
(oz)

DA 990182 1 100* 5 .50 40 14

DA 990181 2 75 5 .50 40 14

DA 990184 4 37.50 5 .50 40 14

DA 990185 6 25 5 .50 40 14

DA 990186 8 18.75 5 .50 40 14

DA 990187 10 15 5 .50 40 14

DA 990190 12 12.50 5 .50 40 14

DA 990194 20 7.50 5 .50 40 14

DA 990195 30 5 5 .50 40 14

DA 990263 60 2.50 5 .50 40 14

DA 990200 120 1.25 5 .50 40 14

*Maximum gear train loading

Model	Part Number	Speed @ Output Shaft (rpm)	Rated Pull-Out Torque (oz-in)	Input Power (watts)	Capacitor Value (mfd)	Temp. Rise C. Full Load	Weight (oz)
DA	990182	1	100*	5	.50	40	14
DA	990181	2	75	5	.50	40	14
DA	990184	4	37.50	5	.50	40	14
DA	990185	6	25	5	.50	40	14
DA	990186	8	18.75	5	.50	40	14
DA	990187	10	15	5	.50	40	14
DA	990190	12	12.50	5	.50	40	14
DA	990194	20	7.50	5	.50	40	14
DA	990195	30	5	5	.50	40	14
DA	990263	60	2.50	5	.50	40	14
DA	990200	120	1.25	5	.50	40	14

DB Series

Model Part
Number Speed

RRM RPH RPD

DB 992088 32 768

DB 990394 1/2 30 720

DB 990395 2/5 24 576

DB 990925 3/8 22 1/2 540

DB 990396 1/3 20 480

DB 991200 3/10 18 432

DB 991206 16 2/3 400

DB 990408 16 384

DB 990400 1/4 15 360

DB 991901 14 336

DB 990418 1/5 12 288

DB 990457 3/16 11 1/4 270

DB 990406 1/6 10 240

DB 990402 8 192

DB 990407 1/8 7 1/2 180

DB 990397 1/10 6 144

DB 990410 1/12 5 120

DB 990411 2/25 4 4/5

DB 991880 4 1/2 108

DB 990419 1/15 4 96

DB 990414 1/18 3 1/3 80

DB 990404 1/20 3 72

DB 990409 1/24 2 1/2 60

DB 990421 1/25 2 2/5

DB 992521 2 1/4 54

DB 990398 1/30 2 48

DB 990424 1/45 1 1/3 32

DB 990405 1/50 1 1/5

DB 990401 1/60 1 24

Model	Part Number	Speed
Model	Part Number	RRM	RPH	RPD
DB	992088		32	768
DB	990394	1/2	30	720
DB	990395	2/5	24	576
DB	990925	3/8	22 1/2	540
DB	990396	1/3	20	480
DB	991200	3/10	18	432
DB	991206		16 2/3	400
DB	990408		16	384
DB	990400	1/4	15	360
DB	991901		14	336
DB	990418	1/5	12	288
DB	990457	3/16	11 1/4	270
DB	990406	1/6	10	240
DB	990402		8	192
DB	990407	1/8	7 1/2	180
DB	990397	1/10	6	144
DB	990410	1/12	5	120
DB	990411	2/25	4 4/5
DB	991880		4 1/2	108
DB	990419	1/15	4	96
DB	990414	1/18	3 1/3	80
DB	990404	1/20	3	72
DB	990409	1/24	2 1/2	60
DB	990421	1/25	2 2/5
DB	992521		2 1/4	54
DB	990398	1/30	2	48
DB	990424	1/45	1 1/3	32
DB	990405	1/50	1 1/5
DB	990401	1/60	1	24
