| AVHP Vandal-proof keypad with anti-pull-off keys | |
AVHP keypads trace their origin to a special design for the Telecommunications Administration of France. The heavyduty metal keys, front plate, and mechanism are designed for outdoor anti-vandal service in telephones, ATMs, vending machines, and similar applications. Shouldered pushbuttons cannot be removed. Deeply engraved legends resist defacing by coins, keys, or other tools. Standard 12-key telephone and special 13 to 20-key layouts feature matrix circuits. Reliable keypad performance is assured with more than 1-million operations.
|
 |
| AVHP Keypad | |
|---|---|
| Description | Part Number |
| 12-key, telephone layout | AVHP 50124 |
| 13- to 20-key layout | Consult Beckwith Electronics |
| Specifications | |
| Contacts: Carbon/gold |
24 V/20 mA nominal 24V max. 50 mV/10 mA min. 0.7W nominal power |
| Contact circuit resistance | <120 Ohms, 50 mV/10 mA |
| Insulation resistance | >1,000 M Ohms, 100 VDC |
| Operating force | 3.0 N +20% |
| Travel | 2.6 mm |
| Operating life | >1-million operations |
| Vibration resistance | 500/10 Hz, 10 cycles, 10 G |
| Mechanical shock resistance | 100 G (CEI 512-4) 40 G/1000 (CEI 512-4) |
| E.D.S. protection | 5000 V |
| Operating temperature | -25 to +85°C |
| Storage temperature | -40 to +85°C |
| Sealing | IP 52 |
| Damp heat | 21 days (CEI 512-6) |
| Dry heat @ 85°C | 21 days |
| Saline mist | 96 hours (CEI 512-6) |

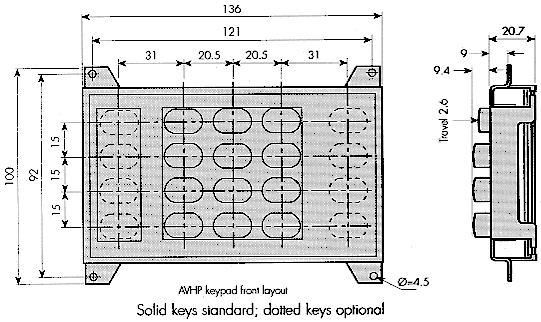

12-key telephone-style keypad

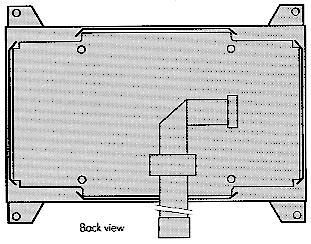

13 to 20-key keypad
