ECOMETAL  Vandal proof keypads
Discontinued for reference only
SECME's lowest cost anti-vandal keypads, ECOMETAL models are available in 12-key numerical and telephone style layouts. These economical keypads feature robust metal construction and mechanisms designed for up to 2-million operations. Standard model is ideal for indoor or protected applications requiring anti-pull off keys; Premium models use silicone rubber sealing to also prevent contamination from dust, moisture, or corrosives. ECOMETAL key pads are suited for public telephone, vending machine, entry, automatic teller machines and other high volume applications. Attractive, economical all-metal keypads Bright chrome finishes Anti-vandal design and construction 12-key numerical or telephone layout, matrix circuit Premium is compatible with 2 of 7 circuit Easy weather-proof mounting Up to 2-million operations

ECOMETAL Keypads Discontinued for reference only
Description	Part Number
Standard
12-key, matrix circuit, numerical layout	ECOM 12150 30
Premium
12- key, matrix circuit, numerical layout	ECOM 12750 30
12-key, matrix circuit, telephone style layout	ECOM 12850 30

Specifications Discontinued for reference only
Model	Standard	Premium
Contacts:	silver ink/gold 24 V/20 mA nom 500 mV/10 mA min 0.5 W nom. power	silicone rubber/gold 24 VDC/100 mA max
Contact resistance	<200 Ohms	<200 Ohms
Insulation resistance	>1,000 M Ohms/100 V	>1,000 M Ohms/ 250 V
Operating force	1.2 N +30%	1.4 N.+25%
Operating travel	1.6 mm +0.1 mm	1.6 mm+0.1 mm
Operating life	1-million operations	2-million operations
Operating temperature	-20 to + 60°C	-30 to + 100°C
Storage temperature	-40 to + 65°C	-30 to + 100°C
Finish	Chrome	Chrome, marine quality process
Sealing		weatherproof

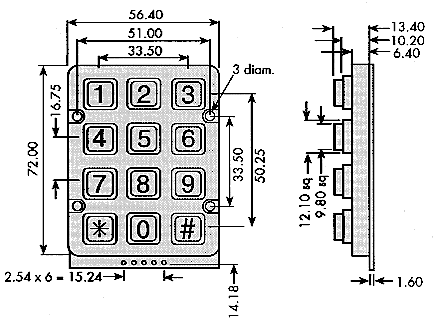

Standard ECOMETAL keypad

Button location
for electrical wiring

Matrix X-Y

Connector outputs
(top vies)

Premium ECOMETAL keypad

Button location
for electrical wiring

Matrix C-R

Connector outputs
