EAO Switch

Discontinued for reference only

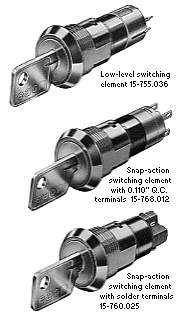

Series 15 Two position keylock switches Low level to 5 amp switch elements Features: 250 VAC/5A, 220 VDC/0.1A, 24 VDC/2A snap action 42 VAC/0.1A, 42 VDC/0.1A low level Minimum depth: 1.60" Low cost 3/4-inch mounting hole keylock Rugged quality and reliability Anti-static Choice of contact elements Low profile bezel

To Order: select keylock function and contact configuration, plus contact material and termination, when applicable.

Two Position Keylock Part Numbers Round Bezel, Bright Chrome Finish
	Contact Configuration	Contact Material	Contact Termination	Part Number
Low Level bifurcated contacts 50VAC/72 VDC 100mA	1PST, N.O.	Gold	Universal	15-755.036
	2PST, N.O.	Gold	Universal	15-750.036
	2PST, 1N.O. 1N.C.	Gold	Universal	15-752.036
Snap acting double air break contacts (D.B.) 250V AC/DC 5 amps	1PDT-D.B.	Silver	0.110" Q.C.	15-768.012
		Silver	Solder	15-760.015
		Gold	0.110" Q.C	15-768.022
		Gold	Solder	15-760.025
	2PDT-D.B.	Silver	Solder	15-761.015
	2PDT-D.B.	Gold	Solder	15-761.025
	3PDT D.B.	Silver	Solder	15-762.015
	3PDT D.B.	Gold	Solder	15-762.025
	4PDT-D.B.	Silver	Solder	15-763.015
	4PDT-D.B.	Gold	Solder	15-763.025
