EAO Switch

Series 02/03

10 Amp Power Switches and Indicators

Features:
380 VAC/10A, 220VDC/0.2A, 24 VDC/6A
Minimum depth
Rugged design for power applications
Lighted or unlighted pushbuttons
Two lamp/split lens models (series 03 only)
Protection guards available
Front panel replacement lens and lamp
Choice of lamps/neons/LEDs

To order: First select switch or indicator desired. Then order lens/mushroom cap and illumination. separately.

Order Lamps Separately.

Lamps and Lenses Not Included

Series 02
Pushbuttons & Indicators

(Order lens, lamp,Separately)
Description Momentary Maintained Momentary/
Maintained
Lighted
Pushbutton
1-pole Form C 02-616.011 02-618.011
2-pole Form C 02-617.011 02.619.011 02-620.011
Unlighted
Pushbutton
1-pole Form C 02-611.011 02-613.011
2-pole Form C 02-612.001 01-614.011 02-615.011
Lighted Indicators Indicator, reduced length, 60mm(2.362) 02-021.001

Indicator with resistor
84 mm(3.307), length
60 V, 20 mA lamp
220 V AC/DC 02-070.001
110 V AC/DC 02-071.001
125 V AC/DC 02-072.001
220 V AC only
(with diodes)
02-073.001

Series 03
Pushbuttons & Indicators

(Order lens, lamp,Separately)
Description Momentary Maintained Momentairy/
Maimtained
Lighted Push button
1-button, 1-pole Form C 03-616.011 03-618.011
2-button, 1-pole Form C
one side, indicator other side
03-627.011 03-628.011
1-button, 2-pole Form C 03-617.011 03-619.011 03-620.011
2-button, 2 independent
poles Form C
03-624.011 03-625.011 03-626.011
2-button, 2-pole, interlock
Form C
03-630.011 03-631.001 03-632.001
Unlighted Pushbutton
1-button, 1-pole form C 03-611.011 03-613.011
1-button, 2-pole Form C 03-612.011 03-614.011 03-615.011
2-button, 2 independent
poles Form C
03-621.011 03-622.011 03-623.011
2-button, 2-pole, interlocked
Form C
  01-629.011
Lighted Indicator
Indicator 03-021.001
 Select Color: 0=Black, 1=Solar Black, 2=Red, 3=Orange, 4=Yellow, 5=Green, 6=Blue, 7=Clear, 8=Gray, 9=White. Black and Grey are Opaque.

Lenses/Mushroom Caps
Add color digit
Description Part
No.
0 1 2 3 4 5 6 7 8 9
Translucent, diffusing
pattern on rear
02-901.0 Opaque Black
02-901.1 Solar Black
02-901.2 Red
02-901.3 Orange
02-901.4 Yellow
02-901.5 Green
02-901.6 Blue
02-901.7 Clear
02-901.8 Opaque Gray
02-901.9 White
X X X X X X X X X X
Translucent, no diffusing
pattern on rear
02-902.2 Red
02-902.5 Green
02-902.7 Clear
    X     X   X
Film holder, translucent 02-9082 Red
02-9083 Orange
02-9084 Yellow
02-9085 Green
02-9086 Blue
02-9087 Clear
02-9089 White
    X X X X X X   X
Mushroom caps* 02-930.0 Opaque Black
02-930.2 Red
02-930.4 Yellow
02-930.5 Green
X   X   X X
Hidden legend
Opal Film
02-909 Place over film for effect

Protection guards are available in the Accessory section. To install protection guards, existing flat bezel must be removed and protection guard inserted in its place.

Series 03Lenses/Mushroom Caps
Add color digit
Description Part No. Black
border
on lens
face1
O
p
a
q
u
e
T
r
a
n
s
p
a
r
e
n
t
*
T
r
a
n
s
l
u
s
c
e
n
t
With
diffuser
pattern
 Add color digit:
0=Black, 1=Solar Black2, 2=Red,
3=Orange, 4=Yellow, 5=Green,
6=Blue, 7=Clear, 8=Gray, 9=White.
Black and Grey are Opaque.
0 1 2 3 4 5 6 7 8 9
Full width, 1-segment Lens
Recommended for:
03-61_
03-620 only
indicators

Not recommended for:
03-62_/03-63_

03-901.0 Opaque Black
03-901.1 Solar Black
03-901.2 Red
03-901.3 Orange
03-901.4 Yellow
03-901.5 Green
03-901.6 Blue
03-901.7 Clear
03-901.8 Opaque Gray
03-901.9 White
  X       X               X
    X   X   X           X
      X X     X X X X X     X
03-930.0 Opaque Black
03-930.2 Red
03-930.4 Yellow
03-930.5 Green
  X       X   X   X X
03-941.7     X     1Black border on a lens will prevent lateral light from escaping from the sides of a lens. Should be used in dark or dimly lighted areas.
03-951.7/7 X   X
03-952.1/1 X   X
Full width, 2-segment Lens(specify color combinations)
Recommended for:
03-61_
03-620 only
indicators

Not recommended for:
03-62_/03-63_

03-902.0/0 Opaque Black/Opaque Black
03-902.1/0 Solar Black/Opaque Black
03-902.2/0 Red/Opaque Black
03-902.3/0 Orange/Opaque Black
03-902.4/0 Yellow/Opaque Black
03-902.5/0 Green/Opaque Black
03-902.6/0 Blue/Opaque Black
03-902.7/0 Clear/Opaque Black
03-902.8/0 Opaque Gray/Opaque Black
03-902.9/0 White/Opaque Black
03-902.0/1 Opaque Black/Solar Black
03-902.1/1 Solar Black/Solar Black
03-902.2/1 Red/Solar Black
03-902.3/1 Orange/Solar Black
03-902.4/1 Yellow/Solar Black
03-902.5/1 Green/Solar Black
03-902.6/1 Blue/Solar Black
03-902.7/1 Clear/Solar Black
03-902.8/1 Opaque Gray/Solar Black
03-902.9/1 White/Solar Black
03-902.0/2 Opaque Black/Red
03-902.1/2 Solar Black/Red
03-902.2/2 Red/Red
03-902.3/2 Orange/Red
03-902.4/2 Yellow/Red
03-902.5/2 Green/Red
03-902.6/2 Blue/Red
03-902.7/2 Clear/Red
03-902.8/2 Opaque Gray/Red
03-902.9/2 White/Red
03-902.0/3 Opaque Black/Orange
03-902.1/3 Solar Black/Orange
03-902.2/3 Red/Orange
03-902.3/3 Orange/Orange
03-902.4/3 Yellow/Orange
03-902.5/3 Green/Orange
03-902.6/3 Blue/Orange
03-902.7/3 Clear/Orange
03-902.8/3 Opaque Gray/Orange
03-902.9/3 White/Orange
03-902.0/4 Opaque Black/Yellow
03-902.1/4 Solar Black/Yellow
03-902.2/4 Red/Yellow
03-902.3/4 Orange/Yellow
03-902.4/4 Yellow/Yellow
03-902.5/4 Green/Yellow
03-902.6/4 Blue/Yellow
03-902.7/4 Clear/Yellow
03-902.8/4 Opaque Gray/Yellow
03-902.9/4 White/Yellow
03-902.0/5 Opaque Black/Green
03-902.1/5 Solar Black/Green
03-902.2/5 Red/Green
03-902.3/5 Orange/Green
03-902.4/5 Yellow/Green
03-902.5/5 Green/Green
03-902.6/5 Blue/Green
03-902.7/5 Clear/Green
03-902.8/5 Opaque Gray/Green
03-902.9/5 White/Green
03-902.0/6 Opaque Black/Blue
03-902.1/6 Solar Black/Blue
03-902.2/6 Red/Blue
03-902.3/6 Orange/Blue
03-902.4/6 Yellow/Blue
03-902.5/6 Green/Blue
03-902.6/6 Blue/Blue
03-902.7/6 Clear/Blue
03-902.8/6 Opaque Gray/Blue
03-902.9/6 White/Blue
03-902.0/7 Opaque Black/Clear
03-902.1/7 Solar Black/Clear
03-902.2/7 Red/Clear
03-902.3/7 Orange/Clear
03-902.4/7 Yellow/Clear
03-902.5/7 Green/Clear
03-902.6/7 Blue/Clear
03-902.7/7 Clear/Clear
03-902.8/7 Opaque Gray/Clear
03-902.9/7 White/Clear
03-902.0/8 Opaque Black/Opaque Gray
03-902.1/8 Solar Black/Opaque Gray
03-902.2/8 Red/Opaque Gray
03-902.3/8 Orange/Opaque Gray
03-902.4/8 Yellow/Opaque Gray
03-902.5/8 Green/Opaque Gray
03-902.6/8 Blue/Opaque Gray
03-902.7/8 Clear/Opaque Gray
03-902.8/8 Opaque Gray/Opaque Gray
03-902.9/8 White/Opaque Gray
03-902.0/9 Opaque Black/White
03-902.1/9 Solar Black/White
03-902.2/9 Red/White
03-902.3/9 Orange/White
03-902.4/9 Yellow/White
03-902.5/9 Green/White
03-902.6/9 Blue/White
03-902.7/9 Clear/White
03-902.8/9 Opaque Gray/White
03-902.9/9 White/White
  X       X               X
    X   X   X           X
      X X     X X X X X     X
03-942.7/7     X     2Solor black lens will hide a film legend until the lens is illuminated.
03-951.7/7 X   X
03-952.1/1 X   X
Half Width Lens
Plastic lens, metal base

Two per switch for:
03-62_ only

Except interlocks

03-921.0 Opaque Black
03-921.1 Solar Black
03-921.2 Red
03-921.3 Orange
03-921.4 Yellow
03-921.5 Green
03-921.6 Blue
03-921.7 Clear
03-921.8 Opaque Gray
03-921.9 White
  X       X               X
    X   X   X           X
      X X     X X X X X     X
03-943.7     X     To obtain hidden legend effect:
Use opal film for 03-943 or 03-953, solar lens for 03-954.
03-953.7 X   X
03-954.1 X   X
Half Width Lens
All plastic

For interlocks only

03-923.0 Opaque Black
03-923.1 Solar Black
03-923.2 Red
03-923.3 Orange
03-923.4 Yellow
03-923.5 Green
03-923.6 Blue
03-923.7 Clear
03-923.8 Opaque Gray
03-923.9 White
  X       X               X
    X   X   X           X
      X X     X X X X X     X
Film Holders/Hidden Legend Film
Film Holder, Full Width
For type 03-901, 03-941, 03-946, and 03-947 lenses 03-908.2 Red
03-908.3 Orange
03-908.4 Yellow
03-908.5 Green
03-908.6 Blue
03-908.7 Clear
03-908.9 White
    X                   X
      X       X X X X X     X
Film Holder, Half Width
For type 03-902, 03-942, 03-951, 03-952, 03-921, 03-943, 03-953, and 03-954 lenses. Two per switch. 03-922.2 Red
03-922.3 Orange
03-922.4 Yellow
03-922.5 Green
03-922.6 Blue
03-922.7 Clear
03-922.9 White
    X                   X
      X       X X X X X     X
Hidden Legend Opal Film (need filmholder)
Full Width for type 03-941, 03-946, and 03-947 lenses 03-909 Opal film, if placed over a film legend, will hide the legend until the lens is illuminated
Half Width for type 03-942, 03-951, 03-952, 03-943, 03-953, and 03-954 lenses 03-926

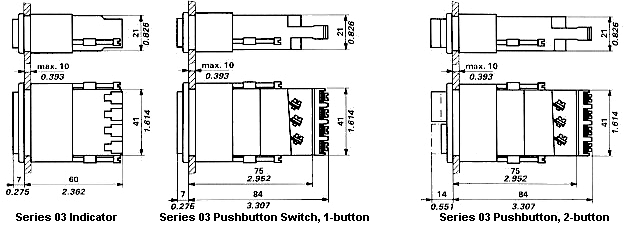

Series 02/03 Dimensional & Mounting Information

Vertical spacing between cutouts: 6 mm (0.236). For two pole switches, a horizontal spacing of 4 mm (0.158) must be maintained or a terminal cover must be used if spacing is less. Not necessary if voltage is low.

Series 03, Two button.
