Series 04
Lighted Indicator Assemblies
Complete set of parts, unassembled. Order lamps separately. Add color digit. |
| Bezel |
Round |
Square |
With translucent diffuser,
for incandescent lamp,
includes mounting flange |
704-000. |
704-200. |
With knerled transparent diffuser,
for neon lamp,
includes mounting flange |
704-001. |
|

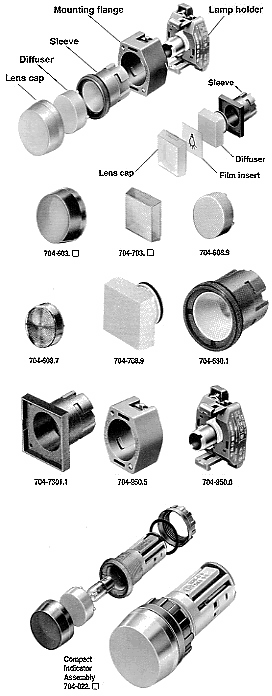

| Component Parts |
| Lens, transparent |
704-603. |
704-403. |
| Diffuser, (can be engraved) |
White |
704-608.9 |
704-708.9 |
| Diffuser, knurled |
Clear |
704-608.7 |
704-708.7 |
| Film insert |
White |
|
704-706.7 |
| Sleeve |
Black |
|
704-730.0 |
| Gray |
704-630.1 |
704-730.1 |
| Mounting flange |
704-950.5 |
704-950.5 |
| Lamp holder |
Screw
0.250" QC |
704-950.0 |
704-950.0 |
| 704-950.1 |
704-950.1 |
Series 04 Compact
Lighted Indicator Assemblies
Built in dropping resistor. Order lamp separately. Add color digit. |
| Description |
Part Number |
Indicator with white translucent diffuser
and transparent lens for incandescent
lamps 6V-103V (2.6W max.) or multi-chip
LED 6V-48V DC |
704-020. |
Indicator with clear knurled diffuser
and transparent lens for neon lamps |
704-021. |
Indicator with built-in voltage dropping
resistor to reduce 220V AC to 130V AC
(2.6W max.) with translucent diffuser
and transparent lens |
704-022. |
Indicator with built-in voltage dropping
resistor to reduce 120V AC to 60V AC
(2.6W max.) with translucent diffuser
and transparent lens |
704-024. |
| Component Parts |
Indicator without
diffuser and lens |
without resistor |
704-642.0 |
with 220V to 130V
dropping reistor |
704-642.1 |
with 125V to 60V
dropping reistor |
704-642.2 |
| Transparent lens |
704-603. |
| Translucent white diffuser |
704-608.9 |
| Clear knurled diffuser |
704-608.7 |
Color: 2=Red, 3=Orange, 4=yellow, 5=Green, 6=Blue, 7=Clear
|
Dimensions and Mounting Suggestions
|
