Aries Electronics

FEATURES:
Dual-beam contacts offering reliable connection with wiping action.
End-to-end and side-to-side stackable.
Available with either straight or retention style solder tail pin.

SPECIFICATIONS:
Body material is black UL 94V-0 glass-filled Thermoplastic (PBT).
Contacts are Phosphor Bronze.
Contact plating is 100 u [2.54 um] Tin over 35 u [.89 um] min. Nickel.
Operating temperature=-67 to 221°F [-55 to 105°C].
Contact current rating=1 Amp.
Contact resistance=30m Ohms max. @ DC 100 mAmps.
Insulator resistance=1000M Ohms min. DC 250V.
Dielectric withstanding voltage=AC 500V for 1 minute.

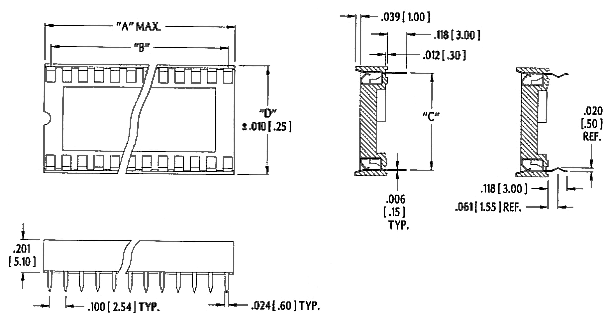

Accepts leads .060-.130 [1.52-3.30] long.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size= .035 + .002 [.89 + .05] dia.
