Aries Electronics


FEATURES:
Aries offers a wide number of pin grid array configurations from which to choose. See Data Sheet No. 14034 for details.
Low-insertion force contacts standard.
Wire-wrap pins also available. Consult Data Sheet Nos. 14035 and 14036.

SPECIFICATIONS:
PGM series socket body is black UL 94V-0 Polyester Thermoplastic.
PGG series socket body is FR-4 material, .062 [1.57] thick.
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is either 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 or 10 u [.25 um] min. Gold per MIL-G-45204 over 100 u [2.54 um] min. Nickel per QQ-N-290.
6-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92 (not applicable to post style pin).
Contact plating is either 100 u [2.54 um] min. 93/7 Tin/Lead per MIL-P-81728 or 10 u [.25 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290. Heavy 30 u [.76 um] Gold plating also available.
Contact current rating=3 Amps.
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.
Standard contact Insertion Force=67 grams/pin; Withdrawal Force=30 grams/pin; Normal Force=45 grams/pin; based on a .018 [.46] diameter test lead.
Special ultra-low Insertion Force=22 grams/pin; Withdrawal Force=11 grams/pin; Normal Force=12 grams/pin; based on a .018 [.46] diameter test lead.
Accepts leads .015-.026 [.38-.66] in diameter, from .110 [2.79] long minimum.

Pin Grid Array Sockets/Headers
on .100 [2.54] centers with
Solder Tail Pins


MOUNTING CONSIDERATIONS:

Suggested PCB hole size=
    Solder tail: .030 + .002 [.76 + .05] dia.
    Post style: .028 + .002 [.71 + .05] dia.

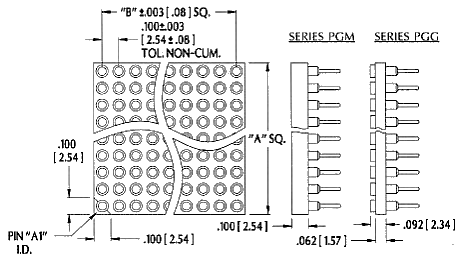

"A"= No. of Pins per Row X .100 [2.54]
"B"= (No. of Pins per Row - 1) X .100 [2.54]




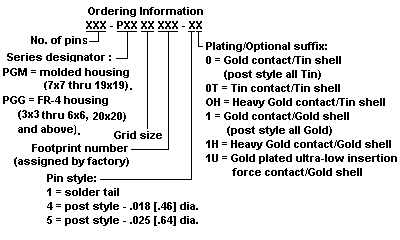

Additional configuration options include a cut-out window for more efficient utilization of board space and better cooling - available with or without pin number one identification shown above.
