FEATURES:
Mini-LinkTM miniature jumpers are useful for jumpering .025 [.63] square pins on .100 [2.54] centers.
Used to jumper from row-to-row or from pin-to-pin.
Their miniature size makes it possible to stack one on top of the other.
A convenient test probe slot is provided as well.
Mini-Links are available with or without a handle, used for ease of inserting or extracting.
Sold in multiples of 50.

SPECIFICATIONS:
Body material is blue UL 94V-0 Glass-filled Polyester Thermoplastic.
Contacts are Beryllium Copper Alloy 174, spring tempered, per ASTM B768.
Standard contact plating is 20 u [.51 um] Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Optional contact plating is 200 u [5.08 um] min. Tin per MIL-T-10727 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Current rating=3 Amps.
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.
Insertion Force=210 + 40 grams/pin.
Withdrawal Force=180 + 40 grams/pin.
Minimum insertion depth=.075 [1.91].

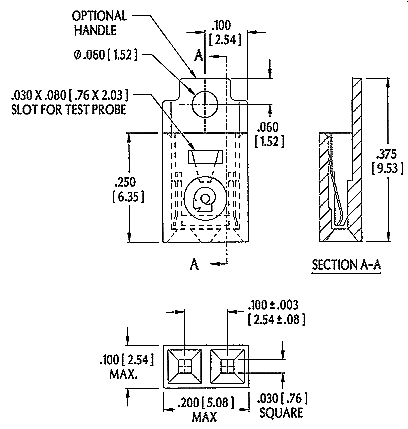

Series ML-100
Mini-LinkTM
Miniature Jumper


Ordering Information
Part
Number
Plating Handle
ML-100 Gold Yes
ML-100T Tin Yes
ML-100S Gold No
ML-100ST Tin No
