FEATURES:
Hermaphroditic stackable connectors allow the stacking of .062 [1.58] PCBs on .500 [12.70] or .600 [15.24] board centers.
Stack as many boards as desired by soldering the solder tail version in the bottom mother board and then press fitting equivalent pin count units with the stackable style pin in the daughter boards.
Designed to accept .025 [.64] square pins.

SPECIFICATIONS:
Body material is blue UL 94V-0 Glass-filled Polyester Thermoplastic.
Pins are Phosphor Bronze Alloy 510, hard temper.
Pin plating options are as follows:

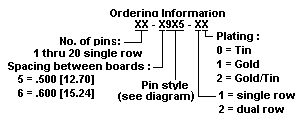

Series 9X5
Press-Lok^TM
Stackable Connectors

"0": 100 u [2.54 um] min. Tin per MIL-T-10727 over 50 u [1.27 um] min. Nickel per QQ-N-290.

"1": 10 u [.25 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.

"2": 10 u [.25 um] min. Gold over 50 u [1.27 um] min. Nickel, as in option "1" in contact area, and 100 u [2.54 um] min. Tin over 50 u [1.27 um] min. Nickel, as in option "0", on balance of pin.

Current rating=1 Amp.
Operating temperature:
221°F [-65°C to 105°C] Tin plating,
257°F [-65°C to 125°C] Gold plating.
PCB Installing Force=140 grams/pin; PCB Withdrawal Force=28 grams/pin; based on a .040 [1.02] dia. plated thru hole.
Insertion Force=85 grams/pin max.; Withdrawal Force=28 grams/pin min.; Normal Force=100 grams/pin min.
Insulation resistance = 1000M Ohms min.
Dielectric withstanding voltage=600 VAC.
Accepts leads .020-.030 [.51-.76] square, .115-.325 [2.92-8.23] long.

MOUNTING CONSIDERATIONS:

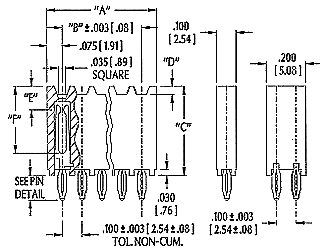

Suggested PCB hole size (for solder tail) =.045 + .002 [1.14 +.05] dia.

"A"= No. of Pins per Row X .100 [2.54] +.050 [1.27]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

Board Spacing Dim. "C" Dim. "D" Dim. "E" Dim. "F"

.500 [12.70] .440 [11.18] .040 [1.02] .115 [2.92] .329 [8.36]

.600 [15.24] .540 [13.71] .140 [3.56] .215 [5.46] .429 [10.90]
