FEATURES: Convert surface mount QFP packages to a 13 x 13 PGA footprint. Reduce costs by using less expensive QFP packages to replace PGA footprints in existing designs. Pins are mechanically fastened and soldered to board using Aries' patented process, creating a reliable electrical connection and rugged contact. Consult Beckwith Electronics for panelized form or for mounting of consigned chips. SPECIFICATIONS: MOUNTING CONSIDERATIONS: |

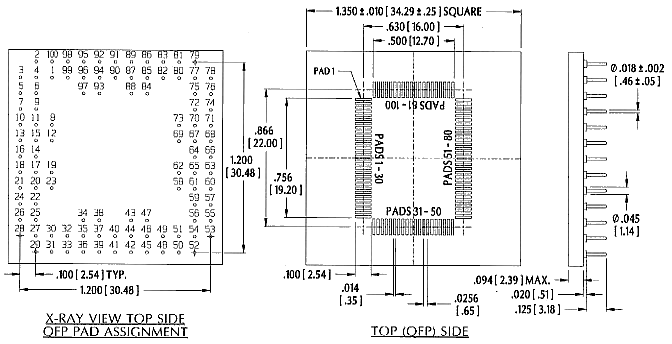

Part No. 96-100M65 QFP to PGA Adapter for EIAJ 100 Position, .0256 [.65] Pitch Correct-A-Chiptm Technology |
|||||||||||
| ||||||||||||
