Aries Electronics

FEATURES:
These low cost Vertisocketstm are recommended for high volume vertical display mounting applications.
Very useful for connection of board-to-board jumpers and for DIP switches as well as LED devices.

SPECIFICATIONS:
Body material is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Bifurcated contacts are Grade A spring-tempered Phosphor Bronze per QQ-B-750.
Contact plating is 50 u [1.27 um] min. Tin alloy.
Contact current rating=1 Amp.
Operating temperature=221°F [105°C]
Insertion Force=110 grams/pin average; Withdrawal Force=75 grams/pin average.
Accepts flat leads up to .014 [.36] thick and .020 [.51] wide; round leads up to .020 [.51] diameter.
Accepts lead lengths: .075-.160 [1.91-4.06].

MOUNTING CONSIDERATIONS:
Suggested PCB hole size: .036 + .002 [.91 + .05] dia.

Series 800 & 822
Thrifty Model Vertisocketstm
with Bifurcated Contacts


No. of Positions Dim. "A" Dim. "B"
8 .450 [11.43] .300 [7.62]
14 .750 [19.05] .600 [15.24]
16 .850 [21.59] .700 [17.78]
18 .950 [24.13] .800 [20.32]
20 1.050 [26.67] .900 [22.86]

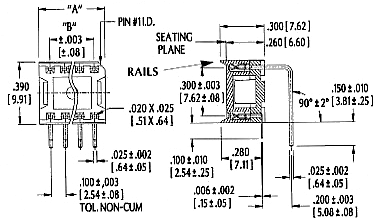

Series 800 Vertical Mounting

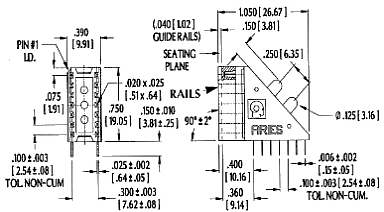

Series 822 Horizontal Mounting

Part Numbers
08-822-90E
08-822-90EWR
14-822-90E
14-822-90EWR
16-822-90E
16-822-90EWR
18-822-90E
18-822-90EWR
20-822-90E
20-822-90EWR
