Aries Electronics

FEATURES:

Aries DIP programmable headers offer unusual versatility for programming within the header itself.

They can be individually programmed using cutters or Aries' programming tool, Part No. T-675, available seperately, to remove the interconnecting sections. Consult Data Sheet No. 2002 for Aries' programming tool.

Adjacent and/or opposing pins are interconnected until the pre-slotted section is programmed out. An almost infinite number of programs can be attained by merely leaving or removing interconnecting sections.

A low profile, snap-on cover protects header from dirt or accidental damage and can be marked to identify the program within the header.

SPECIFICATIONS:
Header body and cover are red UL 94 - HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Pins are Brass Alloy, 3/4 hard.
Pin plating is either 100 u [2.54 um] Tin per MIL-T-10727 or 10 u [.25 um] Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickle per QQ-N-290.
Current rating = 2 Amps.
Operating temperatures:
= 221°F [105°C] Tin plating,
= 257°F [125°C] Gold plating.

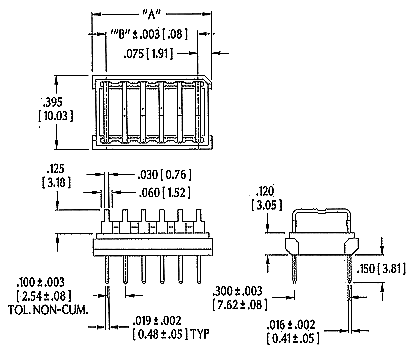

MOUNTING CONSIDERATIONS:
Suggested PCB hole size =.035 + .002 [.89 + .05] dia.

"A"= (No. of Pins per Row X .100 [2.54] ) + .050 [1.27]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

Series 675
DIP Program Headers

Part Numbers
02-675-190
02-675-190T
02-675-191
02-675-191T
04-675-190
04-675-190T
04-675-191
04-675-191T
06-675-190
06-675-190T
06-675-191
06-675-191T
08-675-190
08-675-190T
08-675-191
08-675-191T
10-675-190
10-675-190T
10-675-191
10-675-191T
12-675-190
12-675-190T
12-675-191
12-675-191T
14-675-190
14-675-190T
14-675-191
14-675-191T
16-675-190
16-675-190T
16-675-191
16-675-191T
18-675-190
18-675-190T
18-675-191
18-675-191T
20-675-190
20-675-190T
20-675-191
20-675-191T
