FEATURES:
Aries offers a full line of DIP headers, available with either screw machine or coined contacts in a variety of styles.
Consult Data Sheet No. 12032 for coined contacts.

SPECIFICATIONS:
Body material is black UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Fork and Post style contacts are Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Solder cup style contact is Phosphor Bronze Alloy per 544 UNS C5400 ASTM-B139-90.
Contact plating is either 200 u [5.08 um] min. 93/7 Tin/Lead per Mil-P-81728 or 10 u [.25 um] min. Gold per MIL-G-45204 over 100 u [2.54 um] min. Nickel per QQ-N-290.
Contact current rating=2 Amps (3 Amps for Pin Style 5).
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.
Fork contact accepts up to .035 [.89] diameter leads.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.028 + .002 [.71 + .05] dia.

"W"= No. of Pins per Row X .100 [2.54]
"X"= (No. of Pins per Row - 1) X .100 [2.54]

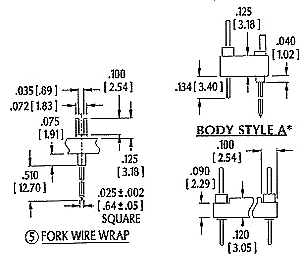

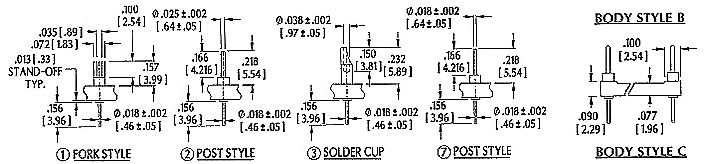

Series 625
DIP Headers
with Screw Machine Contacts


Centers "Y" Dim. "Z" Body Style Available Sizes
.200 [5.08] .300 [7.62] A* 2 thru 10
.300 [7.62] .400 [10.16] C 2 thru 20
B 22 thru 40
.400 [10.16] .500 [12.70] C 2 thru 22
.600 [15.24] .700 [17.78] C 2 thru 40
B 42 thru 48
.900 [22.86] 1.000 [25.40] B 2 thru 64
*Note: Reduced tail length for Body Style A
