Aries Electronics

FEATURES:
Accepts JEDEC leaded Type A PLCC plastic leaded chip carrier.
Low profile.
Solder tail pins on .100 [2.54] centers.

SPECIFICATIONS:
Body material is brown UL 94V-0 Glass-filled Thermoplastic (PPS).
Contacts are Phosphor Bronze.
Contact plating is 100 u [2.54 um] min. Tin over 35 u [.89 um] min. Nickel.
Contact current rating=1 Amp.
Contact resistance=30m Ohms max. @ DC 100m Amps.
Withstanding voltage=500 VAC for 1 minute.
Operating temperature= -67°F to 221°F [-55°C to 105°C].
Insulation resistance=10,000M Ohms min. @ DC 100mA.

MOUNTING CONSIDERATIONS:
See Data Sheet No. 14004 for PCB layouts.

Series 535
LO-PRO®file
Solder Tail PLCC Sockets

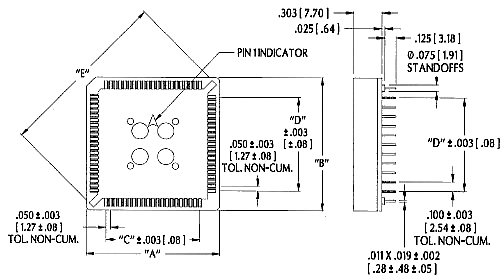

Part
Number		 No.
of
Pos. 		Dim.
A		 Dim.
B		 Dim.
C		 Dim.
D		 Dim.
E
20-535-10 20 .610 [15.50] .610 [15.50] .200 [5.08] .200 [5.08] .657 [16.70]
28-535-10 28 .709 [18.00] .709 [18.00] .300 [7.62] .300 [7.62] .802 [20.38]
32-535-10 32 .709 [18.00] .810 [20.58] .300 [7.62] .400 [10.16] .880 [22.34]
44-535-10 44 .928 [23.58] .928 [23.58] .500 [12.70] .500 [12.70] 1.087 [27.60]
52-535-10 52 1.020 [25.90] 1.020 [25.90] .600 [15.24] .600 [15.24] 1.236 [31.40]
68-535-10 68 1.224 [31.10] 1.224 [31.10] .800 [20.32] .800 [20.32] 1.512 [38.40]
84-535-10 84 1.417 [36.00] 1.417 [36.00] 1.000 [25.40] 1.000 [25.40] 1.795 [45.60]
