Aries Electronics

FEATURES:
A choice of 24, 28, or 40 pin count devices can be inserted without bending or otherwise damaging the legs, since no force is required to either insert or remove the component from the socket.
A metal cam provides strong, smooth action as it moves to a positive stop, compressing the double-sided contacts, ensuring a gas-tight seal.
Test point openings provided to reach all pins.

SPECIFICATIONS:
Plastic body is UL 94V-0 Glass-filled Polyester thermoplastic.
Contacts are Beryllium Copper Alloy 172, spring tempered.
Contact plating is 200 u [5.08 um] min. Tin per MIL-T-10727 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Cam is lightweight, strong, and rigid cast Zinc Alloy.
Operating temperature=-67°F to 221°F [-55°C to 105°C].
Contact current rating=2 Amps.
Contact resistance=10m Ohms max.
Breakdown voltage=1000 VAC min.
Average Retention Force (when closed)=110 grams/lead, based on .010 [.25] diameter test lead.
Socket accepts .008-.014 [.20-.36] thick leads, .075-.200 [1.91-5.08] long.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.035 + .002 [.89 + .05] dia.

Series 526
LO-PRO®file
Zero Insertion Force
Sockets


Part
Number

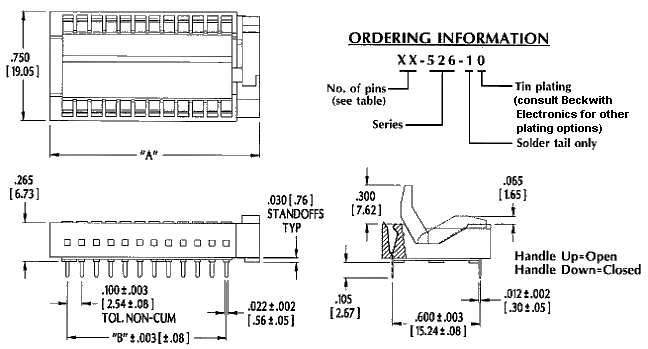

No. of Pos. Dim. "A" Dim. "B"
24-526-10 24 1.450 [36.83] 1.100 [27.94]
28-526-10 28 1.650 [41.90] 1.300 [33.02]
40-526-10 40 2.250 [57.15] 1.900 [48.26]
