Aries Electronics

FEATURES:

A cost effective means of upgrading to SOJ or SOIC... without changing your PCB layout.

Available on .300 [7.62] centers. Consult Data Sheet No. 18011 for adapters on .400 [10.16], or .600 [15.24] centers.

SPECIFICATIONS:
Board material is .062 thick FR-4 with 1 oz. Copper traces, both sides.
Pins are Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin plating is 200 u [5.08 um] min.93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
Operating temperature=221°F [105°C].

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.028 + 003 [.71 + .08]. dia.

Series 35000X
SOIC & SOJ to DIP Adapters
Correct-A-Chip^tm Technology

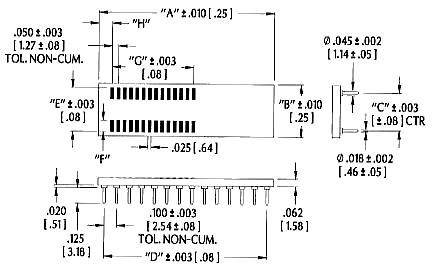

Part Number	Pins	Type	Dim. B	Centers C	Dim. E	Dim. F	Dim. G	Dim. H
08-350000-10	8	SOIC	.460 [11.68]	.300 [7.62]	.455 [11.56]	.155 [3.94]	.150 [3.81]	.121 [3.07]
14-350000-10	14	SOIC	.450 [11.43]	.300 [7.62]	.420 [10.67]	.138 [3.51]	.300 [7.62]	.180 [4.57]
16-350000-10	16	SOIC	.450 [11.43]	.300 [7.62]	.420 [10.67]	.138 [3.51]	.350 [8.89]	.180 [4.57]
18-350000-10	18	SOIC	.450 [11.43]	.300 [7.62]	.420 [10.67]	.138 [3.51]	.400 [10.16]	.180 [4.57]
20-350000-10	20	SOIC	.450 [11.43]	.300 [7.62]	.420 [10.67]	.138 [3.51]	.450 [11.43]	.180 [4.57]
24-350000-10	24	SOIC	.450 [11.43]	.300 [7.62]	.420 [10.67]	.138 [3.51]	.550 [13.97]	.180 [4.57]
20-350001-10	20	SOJ	.420 [10.67]	.300 [7.62]	.350 [8.89]	.090 [2.29]	.600 [15.24]	.060 [1.52]
28-350002-10	28	SOIC	.400 [10.16]	.300 [7.62]	.350 [8.89]	.090 [2.29]	.650 [16.51]	.375 [9.53]

"A"=No. of Pins per Row X .100 [2.54]
"D"=(No. of Pins per Row -1) X .100 [2.54]
