FEATURES:
 Aries Series 152FB Fusion Bonded Cable Jumpers are flexible...plug them directly into PC boards or sockets.
Stranded wire conductors are fusion bonded with an overcoat of tin for easy soldering or socketing.

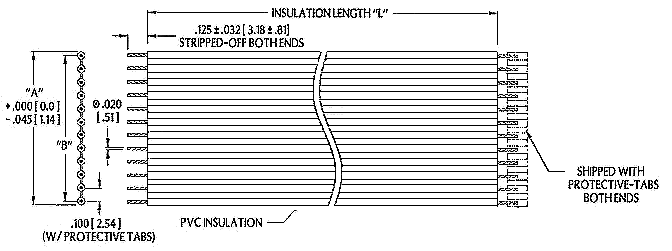

Each jumper is shipped with protective tabs on both ends for maintaining proper conductor spacing.
SPECIFICATIONS:
Insulation is UL VW-1, Style 2651 Polyvinyl Chloride (PVC) with optional polarization stripe on one side.
Nominal insulation thickness is .009 [.23].
Conductors are 26 gauge, 7-strand Copper Alloy with a fusion bonded overcoat of Tin.
Operating temperature = -4°F to 221°F [-20°C to 105°C].
Voltage rating = 300 Vrms.
Dielectric withstanding voltage = 1500 Vrms.
Insulation resistance = l 0,000M Ohms per 10 feet [3.05 meters].
Resistance = 40.3 Ohms per 1000 feet [304.8 meters].
Propagation delay = 1.3 ns/foot.
MOUNTING CONSIDERATIONS:
Suggested PCB hole size = .033 + .002 [.84 + .05] dia.
|
Series 152FB
Fusion Bonded
Cable Jumpers

|
