Aries Electronics

FEATURES:
Aries' adapter sockets allow the use of .300 [7.62] center devices when the PCB is drilled on .600 [15.24] centers and vice-versa, giving the flexibility of using .600 [15.24] or .300 [7.62] center devices in the same application.

SPECIFICATIONS:
Socket body is black UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is 200 u [1.27 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is 30 u [.76 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=3 Amps.
Operating temperature=221°F [105°C].
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] diameter test lead.
Accepts leads .015-.025 [.38-.64] in diameter, .110-.150 [2.79-3.81] long.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.035 + .002 [.89 + .05] dia.

Ordering information

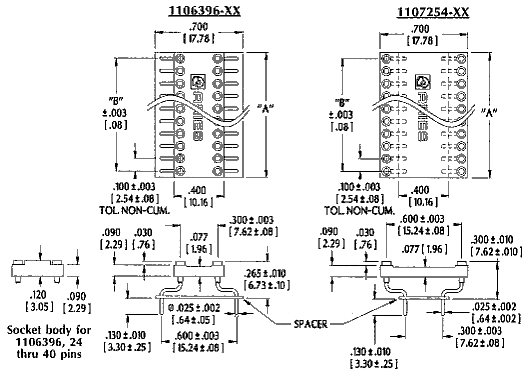

Specify Part No. 1106396-XX when ordering .300 DIP to .600 PCB [7.62 to 15.24] adapter, where XX=No. of Pins (6-40)
-or-
Specify Part No. 1107254-XX when ordering .600 DIP to .300 PCB [15.24 to 7.62] adapter, where XX=No. of Pins (6-40)
