Aries Electronics

FEATURES:

Aries Strip-Line headers are available with either fork or post style coined contacts. Consult Data Sheet No. 12036 for pin-line headers with screw machine contacts.

"Break" feature allows header to be cut to the number of positions desired.

Side-to-side and end-to-end stackable.

SPECIFICATIONS:
Body material is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Coined contacts are Brass, 1/2 hard.
Contact plating is either 100 u [2.54 um] min. Tin per MIL-T-10727 or 10 u [.25 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=2 Amps.
Operating temperature:
221°F [105°C] Tin plating,
257°F [125°C] Gold plating.
Fork contact accepts up to .025 [.64] diameter leads.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.035 + .002 [.89 + .05] dia.

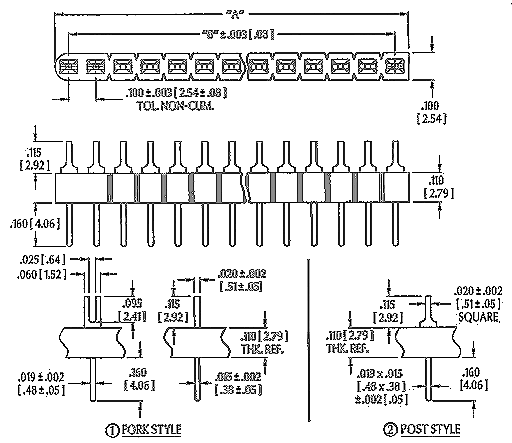

"A"= No. of Pins per Row X .100 [2.54]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

Series 0600
Strip-Line Headers
with Coined Contacts

Part Numbers
01-0600-10
01-0600-11
01-0600-20
01-0600-21
02-0600-10
02-0600-11
02-0600-20
02-0600-21
03-0600-10
03-0600-11
03-0600-20
03-0600-21
04-0600-10
04-0600-11
04-0600-20
04-0600-21
05-0600-10
05-0600-11
05-0600-20
05-0600-21
06-0600-10
06-0600-11
06-0600-20
06-0600-21
07-0600-10
07-0600-11
07-0600-20
07-0600-21
08-0600-10
08-0600-11
08-0600-20
08-0600-21
09-0600-10
09-0600-11
09-0600-20
09-0600-21
10-0600-10
10-0600-11
10-0600-20
10-0600-21
11-0600-10
11-0600-11
11-0600-20
11-0600-21
12-0600-10
12-0600-11
12-0600-20
12-0600-21
13-0600-10
13-0600-11
13-0600-20
13-0600-21
14-0600-10
14-0600-11
14-0600-20
14-0600-21
15-0600-10
15-0600-11
15-0600-20
15-0600-21
16-0600-10
16-0600-11
16-0600-20
16-0600-21
17-0600-10
17-0600-11
17-0600-20
17-0600-21
18-0600-10
18-0600-11
18-0600-20
18-0600-21
19-0600-10
19-0600-11
19-0600-20
19-0600-21
20-0600-10
20-0600-11
20-0600-20
20-0600-21
21-0600-10
21-0600-11
21-0600-20
21-0600-21
22-0600-10
22-0600-11
22-0600-20
22-0600-21
23-0600-10
23-0600-11
23-0600-20
23-0600-21
24-0600-10
24-0600-11
24-0600-20
24-0600-21
25-0600-10
25-0600-11
25-0600-20
25-0600-21
