Aries Electronics

FEATURES:
For mounting liquid crystal displays and other high pin count or odd centered components.
Available in several sizes with bifurcated contacts in solder tail or wire wrap pins. Consult Data Sheet No. 12009 for wire wrap pins.
Optional spacer available for mounting on .300 [7.62], .600 [15.24], .900 [22.86], 1.100 [27.94], and 1.300 [33.02] centers. Consult Beckwith Electronics for other sizes.

SPECIFICATIONS:
Body is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Pin is Grade A Phosphor Bronze per QQ-B-750.
Optional spacer is FR-4, .032 [.81] thick.
Pin plating is either 50 u [1.27 um] min. Tin or 10 u [.25 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Current rating = 1 Amp.
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.
Insertion Force=110 grams/pin average; Withdrawal Force=75 grams/pin average.
Accepts flat leads up to .014 x .020 wide [.36-.51], round leads up to .020 [.51] in diameter.
Socket accepts lead lengths from seating plane .080-.160 [2.03-4.06].

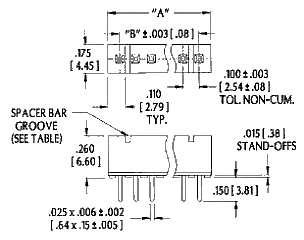

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.036 + .002 [.91 + .05] dia.

"A"= No. of Pins per Row X .100 [2.54] +.050 [1.27]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

Series 0511
Strip-Line Sockets
with Solder Tail
Bifurcated Contacts








No. of Pins No. of Grooves
20 2
25 2
30 2
34 3
40 2
